Anamet Type DE-710 Heavy-Duty Flexible Metal Conduit

Name: Anamet Type DE-710 Heavy-Duty Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: FLE-688d21
Price: 49.99 USD
Availability: OutOfStock

SKU:FLE-688d21

Anamet Type DE-710: Heavy-Duty, UL Recognized Flexible Metal Conduit for OEMs & Industrial Use. Crush-resistant & Extra Flexible. RU Certified, +450°F.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

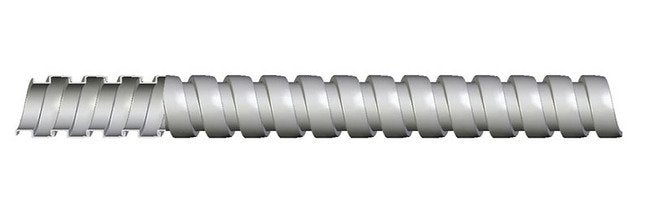

The Anamet Type DE-710 Heavy-Duty Flexible Metal Conduit is a top choice for OEM and Industrial applications, offering exceptional flexibility and crush resistance. Constructed with a continuously interlocked hot dipped zinc galvanized steel core, this conduit is UL recognized for use in manufactured wiring systems. With a nominal size of 5/16 inches and a custom length, it ensures precise installations. Designed for extra flexibility with an approximate bend radius of 1.25 inches, this conduit meets industry certifications, including RU Certification. It is ideal for office furnishings, workstations, and partitions, meeting NEC Article 604 requirements and offering a maximum temperature of +450°F.

Product Specifications

Application 0

Extra FlexibleExtra Strength+450°F Maximum Temperature

Installation 0

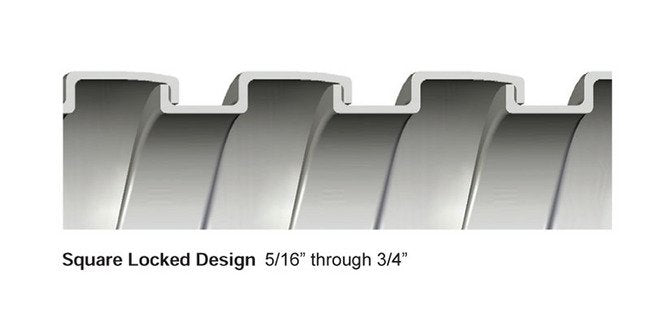

Used in office furnishings, work stations and partitions.Exceptional flexibility for tight "U" bend radius.Complies with UL Recognized File No. E-39679; DXUZ2. Size range, actual I.D. 5/16" through 3/4".Available in custom-cut lengths.+450ºF maximum temperature.

Nec Articles 0

Article 604 Manufactured Wiring Systems

Specifications Approx Inside Bend Radius

1.25 in | 31.75 mm

Specifications Approx Weight Per 100 Ft

11 lbs | 4.99 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

55-28-33-01 | 55-28-33-02 | 91402 | AFS | AFS-5/16 | FlexCon Extra | SLINKY FLEX | USL-516

Specifications Industry Certifications

RU Certification

Specifications Inside Diameter

0.312 to 0.337 in | 7.925 to 8.560 mm

Specifications Jacket Material

None

Specifications Length

Custom

Specifications Nominal Size

5/16 in | 8 mm

Specifications Note

5/16" size not UL recognized.Longer length reels available on request - consult factory.

Specifications Outside Diameter

0.456 to 0.481 in | 11.582 to 12.217 mm

Specifications Packaging

Contact Anamet

Specifications Type

DE - 710
