Angle Sillcock No Kink Valve Brass 125 PSI NSF 61-9
SKU:VAL-d1348d
Premium brass Angle Sillcock Valve, 125 PSI, NSF 61-9 certified, ideal for diverse applications.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Angle Sillcock No Kink Valve Brass 125 PSI NSF 61-9
$35.99
Quantity: 1
Claim Your Seller Account
Angle Sillcock No Kink Valve Brass 125 PSI NSF 61-9
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

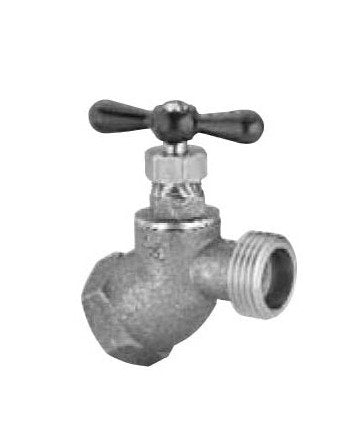

The Angle Sillcock and No Kink Valve, constructed from high-quality brass, is a durable and reliable plumbing solution. With a pressure rating of 125 PSI at 180°F, this valve ensures efficient water control. Featuring FIPS x Hose end size and a 3/4 inch dimension, it is suitable for various applications. Its ANSI/NSF 61-9 certification guarantees safe and quality water flow. The valve's components, including the body, bonnet, and stem, meet ASTM B584 standards for brass materials, ensuring long-term performance.
Product Specifications

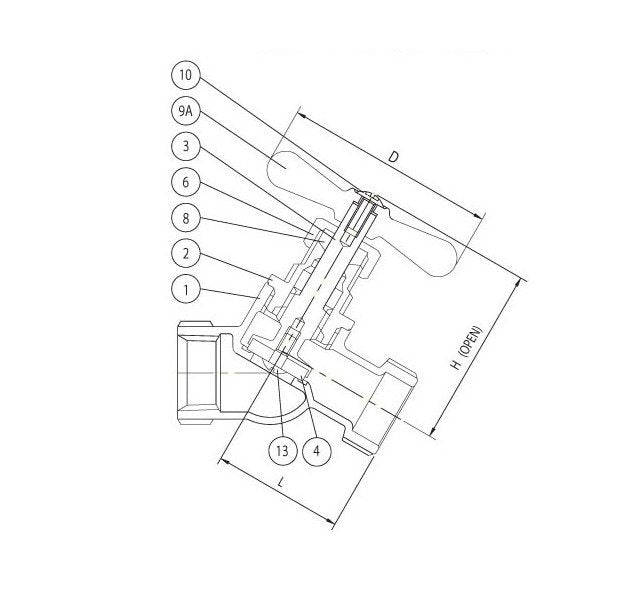

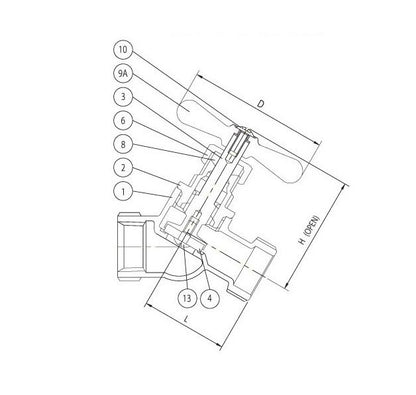

Material List 0
No. Name of Part Specification 1 Body Cast Brass (ASTM B584, C85700) 2 Bonnet Cast Brass (ASTM B584, C85700) 3 Stem Cast Brass (ASTM B584, C85700) 4 Disc NBR 6 Packing Nut Brass (ASTM B16, C36000) 8 Gland Packing Graphite (Commercial) 9 Hand Wheel Cast Iron (ASTM A48 Class 35) 9A Handle Zinc Alloy (B86-AC41) 10 Wheel Nut/Screw Brass Rod (B16)/Steel (AISI 1010) 13 Disc Screw Brass (ASTM B134-C27000) 16 Name Plate Aluminum
Specifications Approx Net Wt
53.00
Specifications Box Qty
10
Specifications Carton Qty
100
Specifications Dimension D
2.16
Specifications Dimension H
2.28
Specifications Dimension L
1.46
Specifications End Size
FIPS x Hose
Specifications Material
Brass
Specifications Pressure At 180f
125 PSI
Specifications Size
3/4 inches
