Angle Type Thimbleye® Bolt - 45° Bent Design
Angle Type Thimbleye® Bolt - 45° Bent Design
SKU:AER-9173a6
Upgrade aerial hardware with our Angle Type Thimbleye® Bolt - 45° Bent Design, offering secure attachments and efficient installation. Compliant with ANSI and Bell Standards.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Angle Type Thimbleye® Bolt - 45° Bent Design
$249.99
Quantity: 1
Claim Your Seller Account
Angle Type Thimbleye® Bolt - 45° Bent Design
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

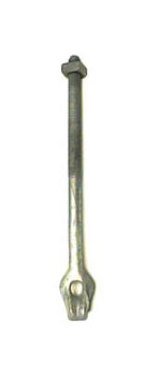

The Angle Type Thimbleye® Bolt features a durable construction designed for attaching guys and deadends to poles and crossarms. This specific 45° bent design eliminates the need for thimbles, strain plates, guy hooks, and extra strand, ensuring a reliable connection. Compliant with ANSI and Bell Standards, these hot dip galvanized bolts offer a secure solution with a 5/8-inch diameter and a minimum ultimate strength of 13,550 pounds, making them ideal for various aerial hardware applications.
Product Specifications
Specifications Approx Shipping Weight Lb Per 100 Pcs
172
Specifications Bolt Diameter In
5/8
Specifications Bolt Length In
14
Specifications Min Ultimate Strength Pound
13550
Specifications Note
ANSI StandardBell Standard
Specifications Thread Length In
6
