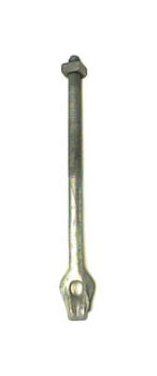

Angle Type Thimbleye® Bolt for Aerial Hardware
Angle Type Thimbleye® Bolt for Aerial Hardware
SKU:AER-998194
Angle Type Thimbleye® Bolt for attaching guys and deadends to poles and crossarms. ANSI, REA, and Bell Standards compliant.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Angle Type Thimbleye® Bolt for Aerial Hardware
$249.99
Quantity: 1
Claim Your Seller Account
Angle Type Thimbleye® Bolt for Aerial Hardware
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Angle Type Thimbleye® Bolt from our Thimbleye® Bolts product line offers a reliable solution for attaching guys and deadends to poles and crossarms. This bolt, available in a 45° angle design, eliminates the need for thimbles, strain plates, guy hooks, and extra strand, streamlining installation processes. With hot dip galvanization, these bolts feature a high strength capacity, with 5/8-inch bolts offering a minimum ultimate strength of 13,550 pounds and 3/4-inch bolts of 20,050 pounds. ANSI, REA, and Bell Standards compliant, these bolts are roll threaded with cone points for secure fastening.
Product Specifications
Specifications Approx Shipping Weight Lb Per 100 Pcs
160
Specifications Bolt Diameter In
5/8
Specifications Bolt Length In
12
Specifications Min Ultimate Strength Pound
13550
Specifications Note
ANSI StandardREA AcceptedBell Standard
Specifications Thread Length In
6
