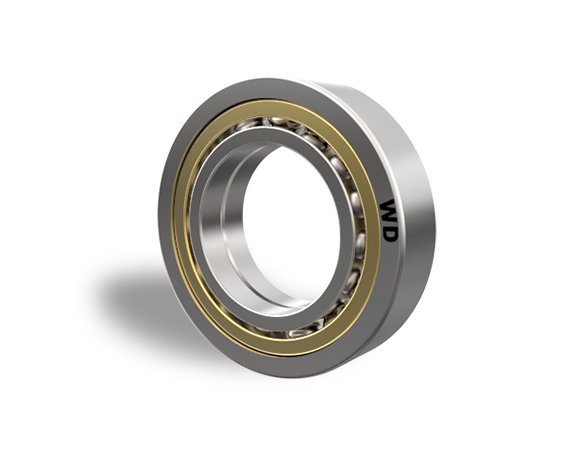

Angular Four Point Contact Ball Bearings
Angular Four Point Contact Ball Bearings
SKU:ANG-9d5bdb
High-performance Angular Four Point Contact Ball Bearings for reliability in heavy-duty applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Angular Four Point Contact Ball Bearings
$159.99
Quantity: 1
Claim Your Seller Account
Angular Four Point Contact Ball Bearings
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Angular Four Point Contact Ball Bearings are precision-engineered for exceptional performance in heavy-duty applications. With a bore diameter of 90 mm, outside diameter of 190 mm, and a dynamic load rating of 252 kN, these bearings ensure reliable operation under varying conditions. Designed for high-speed operations, they offer a grease limiting speed of 2800 rpm and an oil limiting speed of 3800 rpm. The bearings meet stringent industry standards, making them suitable for government and institutional procurement needs.
Product Specifications

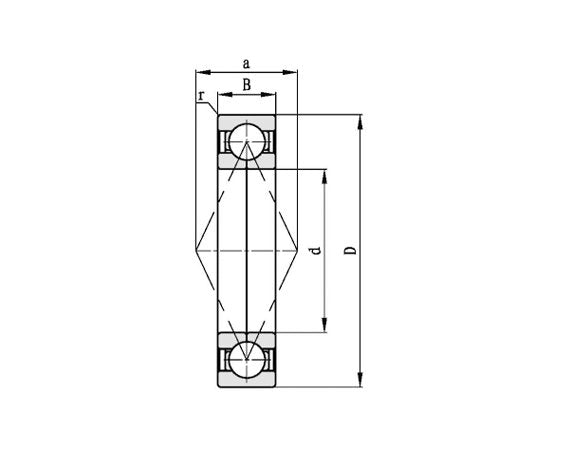

Boundary Dimensions Bore Diameter
90 mm
Boundary Dimensions Minimum Dimension R
3 mm
Boundary Dimensions Outside Diameter
190 mm
Boundary Dimensions Overall Bearing Width
43 mm
Limiting Speed Grease Limiting Speed
2800 rpm
Limiting Speed Oil Limiting Speed
3800 rpm
Load Rating Dynamic Cr Load Rating
252 kN
Load Rating Static Cor Load Rating
260 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
176 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
2.5 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
104 mm
Specifications Approximate Mass
6.36 kg
Specifications Distance Of Working Points A
98 mm
