Anodized Platen Heater - 300mm, Aluminum Alloy 356

Name: Anodized Platen Heater - 300mm, Aluminum Alloy 356
Brand: Cast Aluminum Solutions, LLC
SKU: 200-63e677
Price: 899.99 USD
Availability: OutOfStock

SKU:200-63e677

Reliable 300mm Anodized Platen Heater for semiconductor processing. Precise temperature control, compliant with MIL-A-8525.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

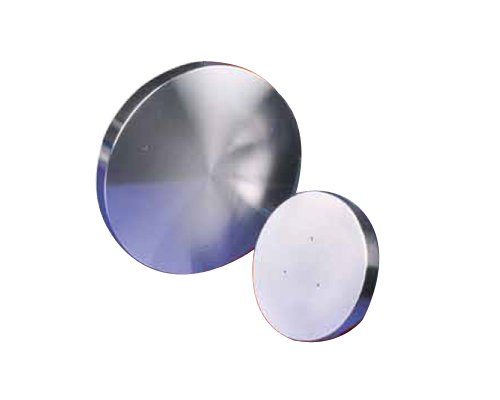

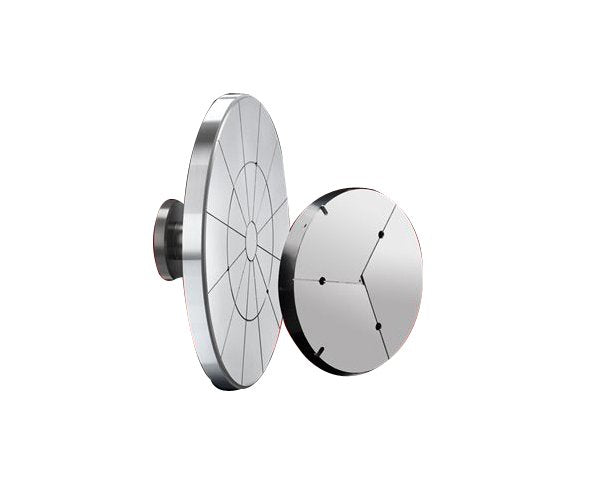

The 300 Millimeter Anodized Platen Heater is a reliable solution for semiconductor processing and research. With a diameter of 13.78 inches and a power of 3350W at 208V, this aluminum heater offers precise temperature control and uniformity. Featuring an industry-standard hard anodized finish and compliance with MIL-A-8525, Type III, Class 1, this heater ensures long-term performance. Ideal for 200 and 300mm wafer processing, it guarantees ±0.3% surface temperature uniformity for accurate processing.

Product Specifications

Additional Information 0

This platen heater design is ideal for prototype machine trials or engineering experiments as well as temporary repairs until custom heaters can be manufactured. CAS platen heaters provide a complete turnkey solution and are available in anodized finish, or in bare machined aluminum 356 with optional add-on features. The stock anodized cast aluminum platen heaters are complete, ready to install parts and are available for shipment within one business day.Part is ultrasonic washed followed by IPA wipe down prior to packaging.

Applications 0

Semiconductor processing.Semiconductor research and development.

Features And Benefits 0

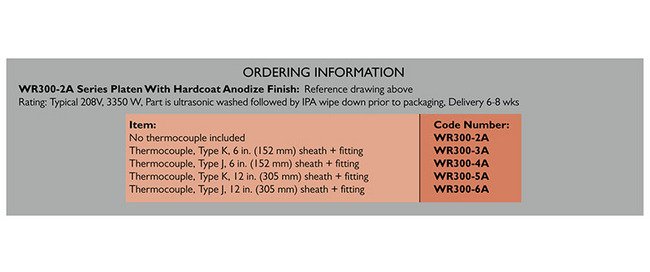

Stock deliveryWR300-2A ship within one business day to reduce down time.Assures a cost effective option for 200 and 300 mm wafer processing.World class performance"Cast-in" reliability assures long product life.Operating temperatures up to 752 ºF (400 ºC) for a wide range of process applications.Surface temperature uniformity of ±0.3% of set point assures wafer processing accuracy.

Specifications Angle

120 º

Specifications Cleaning

Ultrasonic wash followed by IPA wipe down

Specifications Delivery Time

6 to 8 weeks

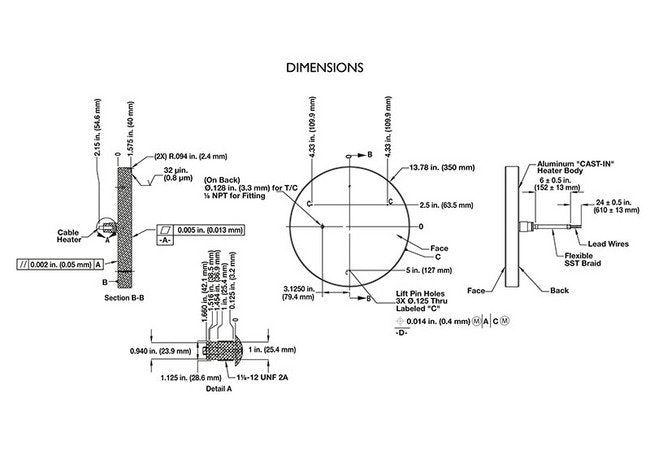

Specifications Diameter

13.78 in | 350 mm

Specifications Hard Anodize Thickness

0.002 in | 0.05 mm

Specifications Heater Power At 208 V

3350 W

Specifications Heater Shape

Platen

Specifications Industry Standards

MIL-A-8525, Type III, Class 1

Specifications Lift Pin Hole Diameter

0.125 in | 3.2 mm

Specifications Material

Aluminum Alloy 356

Specifications Number Of Lift Pin Hole

Specifications Number Of Thermocouple Hole

Specifications Perfect Circle Diameter

10 in | 254 mm

Specifications Surface Flatness

< 0.0005 in | 0.013 mm

Specifications Surface Temperature Uniformity

±0.3% of set point based on measurements at laboratory ambient conditions

Specifications Thermocouple Hole Diameter

0.128 in | 3.25 mm

Specifications Thermocouple Type

No Thermocouple Included

Specifications Thickness

1.575 in | 40 mm

Specifications Power

3350 W

Specifications Voltage

208 V
