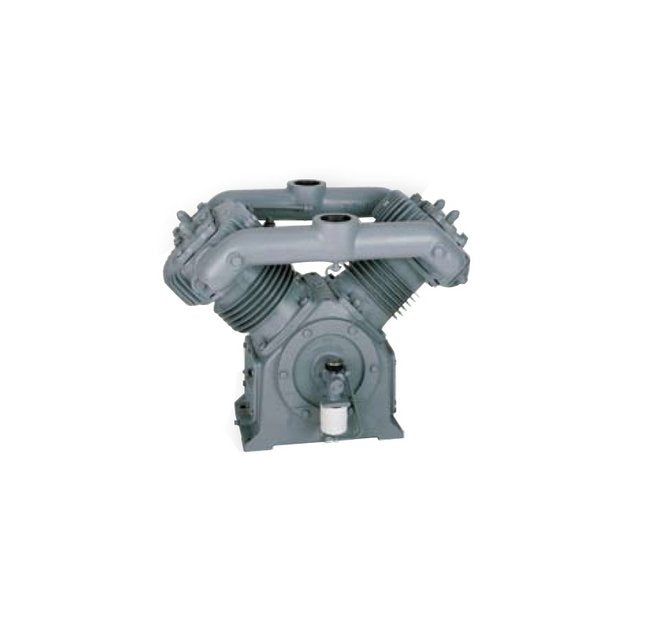

The ANPEAA A Series Reciprocating Compressor is a powerhouse designed for natural gas gathering applications. Available in single and two-stage models, this compressor offers maximum power efficiency, operating within a speed range of 550 to 1000 rpm. Constructed with durable cast iron and featuring plain valve types with AISI 420 stainless steel components, it meets industry standards including Compressed Air and Gas Institute (CAGI) and ISO 9001:2008. With ASME pressure relief valves, deep-finned cylinders for heat dissipation, and concentric ring valves for maximum efficiency, this compressor ensures reliable and continuous operation in demanding industrial settings.
Product Specifications
Additional Information

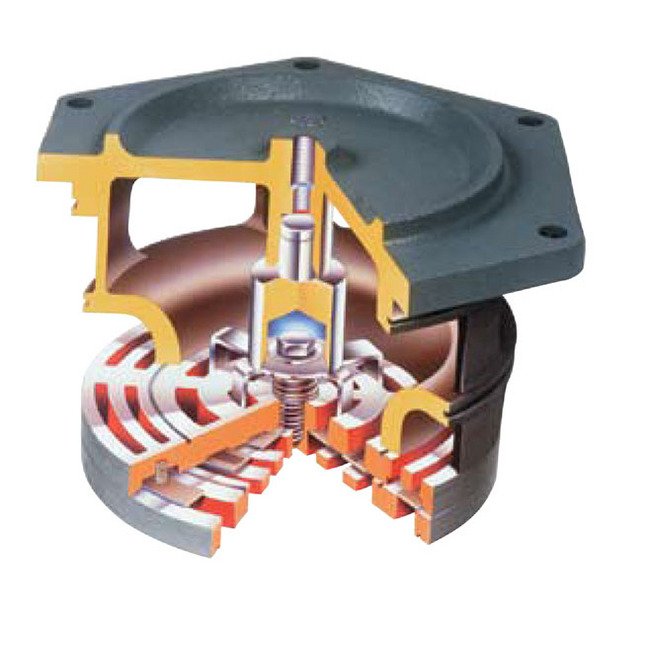

Concentric Ring Type Valves.Drive Sheave with Turbo Fins.No Exposed Brass or Copper Components.Threaded Crankcase Vent Connection.Counter Balanced Crankshaft.Factory Fill with AEON® 500.
Applications
Ideal for use in natural gas gathering applications.
Dimensions Bore Diameter
4 1/4 in
Dimensions Height
26.8 in
Dimensions Length
33.9 in
Dimensions Stroke
4 1/4 x 4 1/2 in
Dimensions Weight
600 lb
Dimensions Width
24.34 in
Lubrication
Superior lubrication is accomplished through a gear driven oil pump powered by the crankshaft.Pressurized system ensures complete lubrication to the crankshaft, connecting rods, bearings and piston pins.Full flow, spin-on oil filter ensures impurities are removed before the lubricant contacts any internal components.Oil pressure gauge is conveniently mounted to display the oil pressure.
Performance At 968 Rpm Airflow At 100 Psig Discharge Pressure An
565.6 mscfd | 13.1 bhp
Performance At 968 Rpm Airflow At 125 Psig Discharge Pressure An
616.0 mscfd | 17.9 bhp
Performance At 968 Rpm Airflow At 150 Psig Discharge Pressure An
462.3 mscfd | 23.7 bhp
Specifications Construction Material
Cast Iron
Specifications Maximum Compressor Power Range
40 hp
Specifications O Ring Material
Viton
Specifications Valve Material
AISI 420 Stainless Steel
