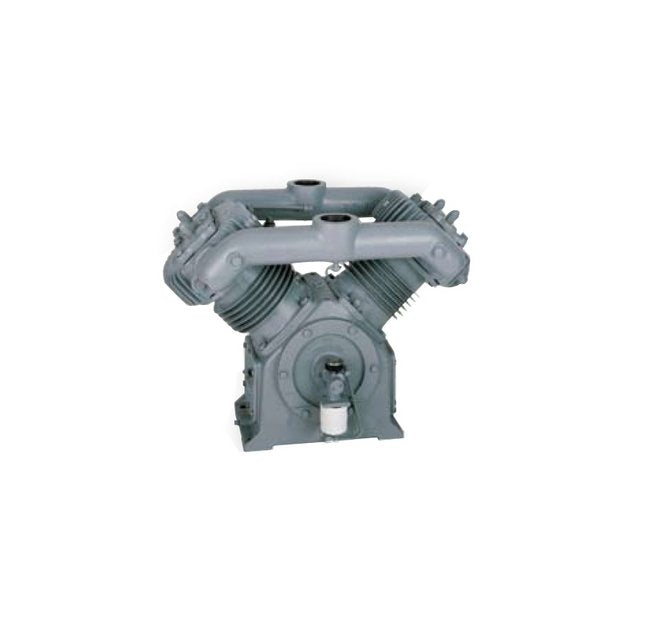

ANPEAA Reciprocating Compressor for Natural Gas Applications
ANPEAA Reciprocating Compressor for Natural Gas Applications
SKU:REC-a04d9d
Powerful ANPEAA Reciprocating Compressor for natural gas applications, with 40 hp power range and 250 psig max pressure.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
ANPEAA Reciprocating Compressor for Natural Gas Applications
$5,999.99
Quantity: 1
Claim Your Seller Account
ANPEAA Reciprocating Compressor for Natural Gas Applications
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANPEAA Reciprocating Compressor is a robust solution designed specifically for natural gas gathering applications. Available in single and two-stage models, this compressor boasts a maximum power range of 40 hp and a maximum pressure of 250 psig. Constructed with durable materials such as cast iron and AISI 420 stainless steel valves, it ensures reliable performance and longevity. Featuring a concentric ring design for efficient airflow, ASME pressure relief valve, and a gear-driven oil pump lubrication system, this compressor delivers superior functionality and ease of maintenance. Ideal for institutions seeking high-performance compressors meeting stringent industry standards.
Product Specifications
Additional Information

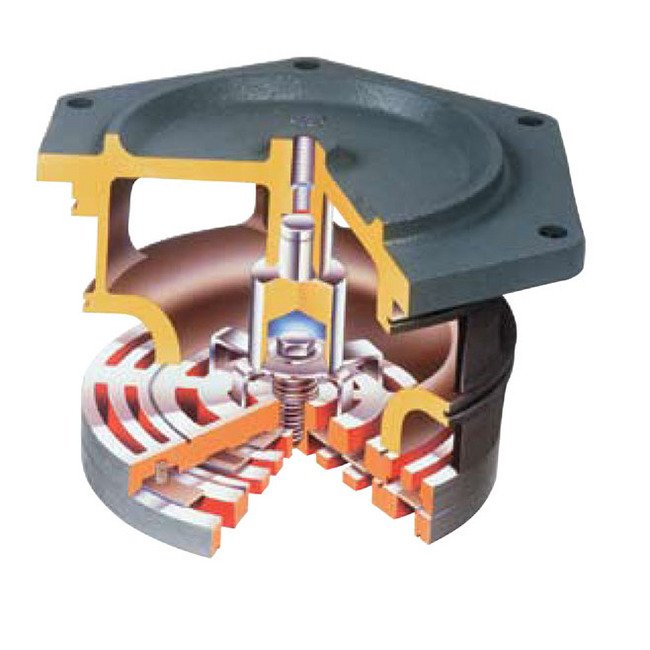

Concentric Ring Type Valves.Drive Sheave with Turbo Fins.No Exposed Brass or Copper Components.Threaded Crankcase Vent Connection.Counter Balanced Crankshaft.Factory Fill with AEON® 500.
Applications
Ideal for use in natural gas gathering applications.
Dimensions Bore Diameter
4 1/4 in
Dimensions Height
26.8 in
Dimensions Length
33.9 in
Dimensions Stroke
4 1/4 x 4 1/2 in
Dimensions Weight
600 lb
Dimensions Width
24.34 in
Lubrication
Superior lubrication is accomplished through a gear driven oil pump powered by the crankshaft.Pressurized system ensures complete lubrication to the crankshaft, connecting rods, bearings and piston pins.Full flow, spin-on oil filter ensures impurities are removed before the lubricant contacts any internal components.Oil pressure gauge is conveniently mounted to display the oil pressure.
Performance At 968 Rpm Airflow At 100 Psig Discharge Pressure An
565.6 mscfd | 13.1 bhp
Performance At 968 Rpm Airflow At 125 Psig Discharge Pressure An
616.0 mscfd | 17.9 bhp
Performance At 968 Rpm Airflow At 150 Psig Discharge Pressure An
462.3 mscfd | 23.7 bhp
Specifications Construction Material
Cast Iron
Specifications Maximum Compressor Power Range
40 hp
Specifications O Ring Material
Viton
Specifications Valve Material
AISI 420 Stainless Steel
