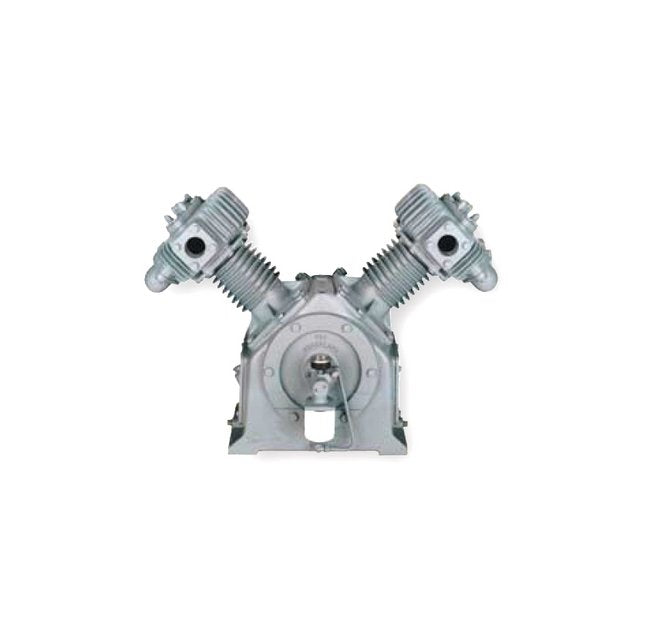

The ANPHAA A Series Reciprocating Compressor is designed for natural gas gathering applications, available in single and two-stage models. With a bore diameter of 7 7/8 inches and weighing 750 lbs, it offers superior performance with a maximum pressure of 60 psig. Constructed with industry-standard materials and certified by CAGI, ISO 9001:2008, and Energy Star, this compressor ensures reliable and efficient operation. Its concentric ring valves and ASME pressure relief valve provide added safety and functionality, making it ideal for industrial use.
Product Specifications
Additional Information

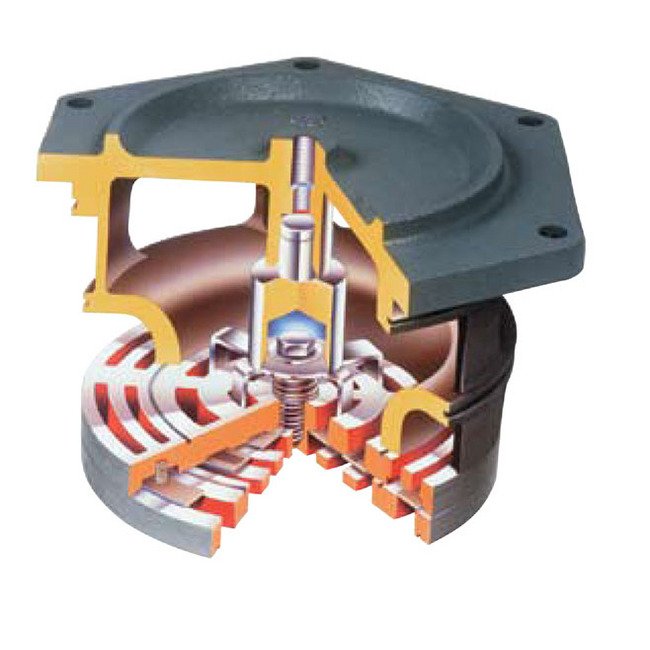

Concentric Ring Type Valves.Drive Sheave with Turbo Fins.No Exposed Brass or Copper Components.Threaded Crankcase Vent Connection.Counter Balanced Crankshaft.Factory Fill with AEON® 500.
Applications
Ideal for use in natural gas gathering applications.
Dimensions Bore Diameter
7 7/8 in
Dimensions Height
29.9 in
Dimensions Length
40.3 in
Dimensions Stroke
7 7/8 x 4 1/2 in
Dimensions Weight
750 lb
Dimensions Width
28.78 in
Lubrication

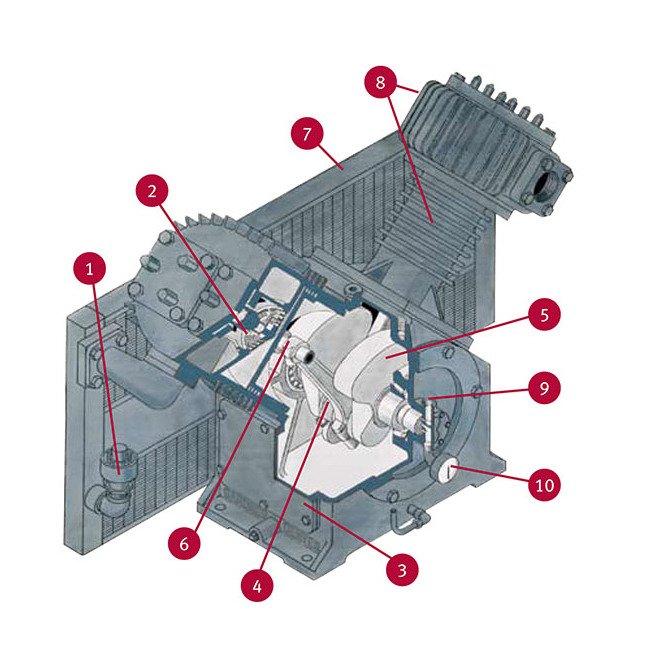

Superior lubrication is accomplished through a gear driven oil pump powered by the crankshaft.Pressurized system ensures complete lubrication to the crankshaft, connecting rods, bearings and piston pins.Full flow, spin-on oil filter ensures impurities are removed before the lubricant contacts any internal components.Oil pressure gauge is conveniently mounted to display the oil pressure.
Note
Sweet Natural Gas with N Value of 1.3; MSCFD = Flow at 14.7 PSIA and 60 ºF
Performance At 968 Rpm Airflow At 10 Psig Discharge Pressure And
406.0 mscfd | 10.4 bhp
Performance At 968 Rpm Airflow At 15 Psig Discharge Pressure And
397.8 mscfd | 14.5 bhp
Performance At 968 Rpm Airflow At 20 Psig Discharge Pressure And
389.8 mscfd | 17.8 bhp
Performance At 968 Rpm Airflow At 25 Psig Discharge Pressure And
381.9 mscfd | 20.7 bhp
Performance At 968 Rpm Airflow At 30 Psig Discharge Pressure And
374.2 mscfd | 23.3 bhp
Specifications Construction Material
Cast Iron
Specifications Maximum Compressor Power Range
40 hp
Specifications O Ring Material
Viton
Specifications Valve Material
AISI 420 Stainless Steel
