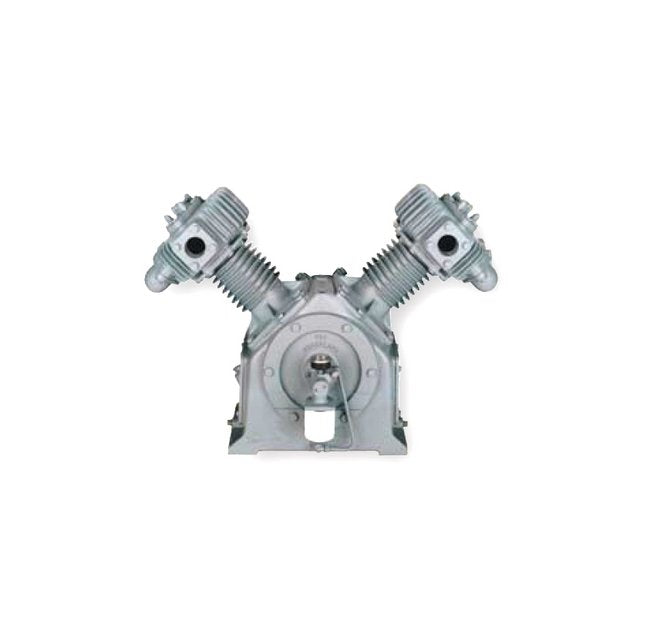

The ANPHAA A Series Reciprocating Compressor is meticulously engineered for natural gas gathering applications. Available in single and two-stage models, this compressor boasts a robust construction with cast iron and AISI 420 stainless steel components, ensuring durability and optimal performance. With features like concentric ring valves, ASME pressure relief valve, and Tri-Metal insert bearings, this compressor delivers high efficiency and reliability. Meeting industry standards such as CAGI and ISO 9001:2008, the ANPHAA compressor is ideal for demanding institutional and government procurement needs.
Product Specifications
Additional Information

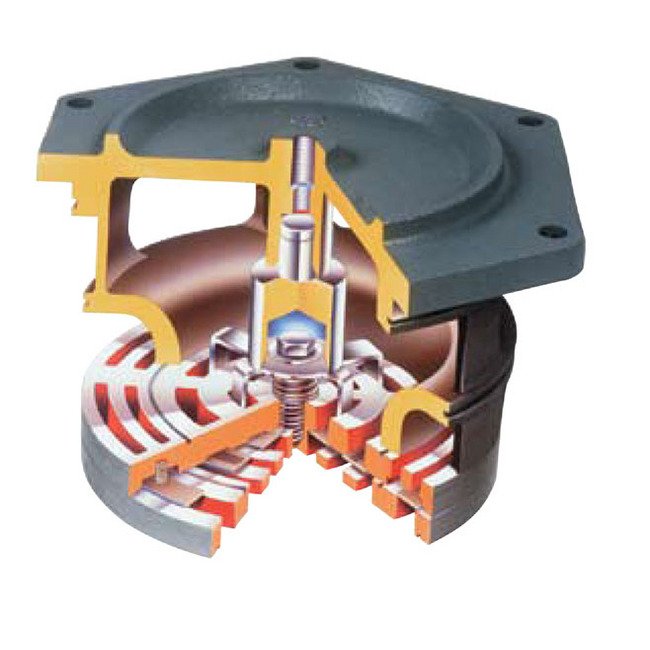

Concentric Ring Type Valves.Drive Sheave with Turbo Fins.No Exposed Brass or Copper Components.Threaded Crankcase Vent Connection.Counter Balanced Crankshaft.Factory Fill with AEON® 500.
Applications
Ideal for use in natural gas gathering applications.
Dimensions Bore Diameter
7 7/8 in
Dimensions Height
29.9 in
Dimensions Length
40.3 in
Dimensions Stroke
7 7/8 x 4 1/2 in
Dimensions Weight
750 lb
Dimensions Width
28.78 in
Lubrication
Superior lubrication is accomplished through a gear driven oil pump powered by the crankshaft.Pressurized system ensures complete lubrication to the crankshaft, connecting rods, bearings and piston pins.Full flow, spin-on oil filter ensures impurities are removed before the lubricant contacts any internal components.Oil pressure gauge is conveniently mounted to display the oil pressure.
Note
Sweet Natural Gas with N Value of 1.3; MSCFD = Flow at 14.7 PSIA and 60 ºF
Performance At 968 Rpm Airflow At 10 Psig Discharge Pressure And
406.0 mscfd | 10.4 bhp
Performance At 968 Rpm Airflow At 15 Psig Discharge Pressure And
397.8 mscfd | 14.5 bhp
Performance At 968 Rpm Airflow At 20 Psig Discharge Pressure And
389.8 mscfd | 17.8 bhp
Performance At 968 Rpm Airflow At 25 Psig Discharge Pressure And
381.9 mscfd | 20.7 bhp
Performance At 968 Rpm Airflow At 30 Psig Discharge Pressure And
374.2 mscfd | 23.3 bhp
Specifications Construction Material
Cast Iron
Specifications Maximum Compressor Power Range
40 hp
Specifications O Ring Material
Viton
Specifications Valve Material
AISI 420 Stainless Steel
