ANSI 150 Teflon Lined Valves - Series 58
ANSI 150 Teflon Lined Valves - Series 58
SKU:VAL-42845d
Discover superior performance with our ANSI 150 Teflon Lined Valves in Series 58. Ideal for industrial applications, these valves offer durability and precision.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
ANSI 150 Teflon Lined Valves - Series 58
$499.99
Quantity: 1
Claim Your Seller Account
ANSI 150 Teflon Lined Valves - Series 58
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 58 Teflon Lined Valves ANSI 150 are engineered to meet the most stringent requirements of industrial applications. With a size range from 2" to 24" and body materials available in Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves deliver exceptional durability and corrosion resistance. The Teflon lining ensures smooth operation and effective sealing. Compliant with ANSI standards and featuring top-notch materials for disc, stem, and seat, these valves provide reliability and performance in critical processes.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel

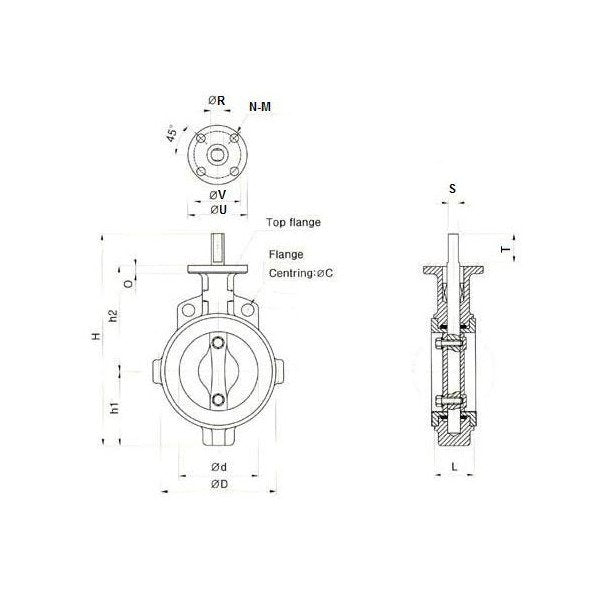

Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
19 mm
Specifications C
139.5 mm
Specifications D
115 mm
Specifications H
241 mm
Specifications H1
71 mm
Specifications H2
140 mm
Specifications L
46 mm
Specifications Number Of Bolts
4
Specifications O
11 mm
Specifications Pressure
ANSI 150LB
Specifications Size
065 - 2-1/2"
Specifications Standard
ANSI
Specifications Stem R
14 mm
Specifications Stem S
10 mm
Specifications Stem T
38 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
4.5 kg
