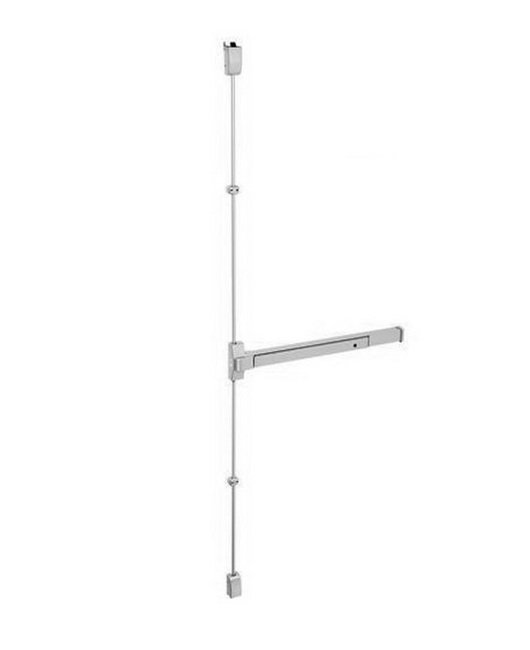

ANSI A156.3 Grade 2 Stainless Steel Finish Vertical Rod Exit Device
ANSI A156.3 Grade 2 Stainless Steel Finish Vertical Rod Exit Device
SKU:COM-6b6a91
Enhance security with our Grade 2 Stainless Steel Vertical Rod Exit Device. Reversible, easy to install, and ANSI A156.3 compliant.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
ANSI A156.3 Grade 2 Stainless Steel Finish Vertical Rod Exit Device
$199.99
Quantity: 1
Claim Your Seller Account
ANSI A156.3 Grade 2 Stainless Steel Finish Vertical Rod Exit Device
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your security with our ANSI A156.3 Grade 2 compliant Stainless Steel Finish Vertical Rod Exit Device. Ideal for double doors without mullions, this reversible panic device is constructed with extruded anodized aluminum push bar and stainless steel springs. With top Pullman type latch and easy installation, it meets the highest industry standards for durability and functionality.
Product Specifications
Accessories Accessories
Item# 19-752Item Name - Night Latch Handle SetFinish - AluminumItem# 19-604ALItem Name - Entry LeverFinish - AluminumItem# 19-604BZItem Name - Entry LeverFinish - BronzeItem# 19-753Item Name - Dummy Handle SetFinish - AluminumItem# 19-619ALItem Name - Storeroom LeverFinish - AluminumItem# 19-1038ALItem Name - Entry Handle SetDescription - with CylinderFinish - AluminumItem# 19-1035ALItem Name - Entry Handle SetDescription - no CylinderFinish - AluminumItem# 9-618ALItem Name - Passage LeverFinish - AluminumItem# 19-751Item Name - Exit Only PlateFinish - AluminumItem# 19-1034ALItem Name - Entry BallFinish - AluminumItem# 19-568Item Name - Rim CylinderFinish - AluminumItem# 19-568BZItem Name - Rim CylinderFinish - BronzeItem# 19-749Item Name - Pull TrimFinish - AluminumItem# 19-750Item Name - Dummy Pull TrimFinish - Aluminum
Features Features
Material: Extruded anodized aluminum push bar, stainless steel springsLatch: Top Pullman type, Bottom bolt assemblyDoor Height: 7' standardBackset: 2-3/4" on 4-1/2" minimum stile width -if less than 4-1/2" backset becomes half of the exposed stile widthStrike: Top-surface mounted, Bottom-flat mortise or into threshold, vertical/rim application use DBLST double dr. strikeProjection: 2-1/2" - 1-7/8" doggedStile: 4-1/2" minimumHanding: Reversible, non-handedDoor Thickness: 1-3/4" standardDoor Width: 36", can be field sized to 30"Mounting Height: Recommended installation at 41" from finished floor to center line of push rail.Fasteners: Furnished with sheet metal and machine screwsCylinder not included.Dogging: 1/2 turn hex key
Specifications Finish
Stainless Steel
Specifications Industry Standards
American National Standards Institute (ANSI) A156.3 Grade 2 | Underwriters Laboratories (UL) Listed
