The Series 52 Full Lug Valves ANSI are expertly designed to meet the diverse needs of industrial applications. With a face to face standard conforming to ISO 5752 S-20 and ANSI flange connections, these valves ensure seamless integration. Available in sizes ranging from 2" to 40", with body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, they offer durability and longevity. The discs are crafted from Coated, Ductile Iron, Stainless Steel, or Aluminum Bronze for optimal performance. Stem materials like K Monel and Stainless Steel, paired with NBR, EPDM, Viton, Neoprene, or Silicone seat materials, guarantee reliability. Ideal for high-pressure environments with various available packing materials. Advance your industrial operations with these top-tier valves.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

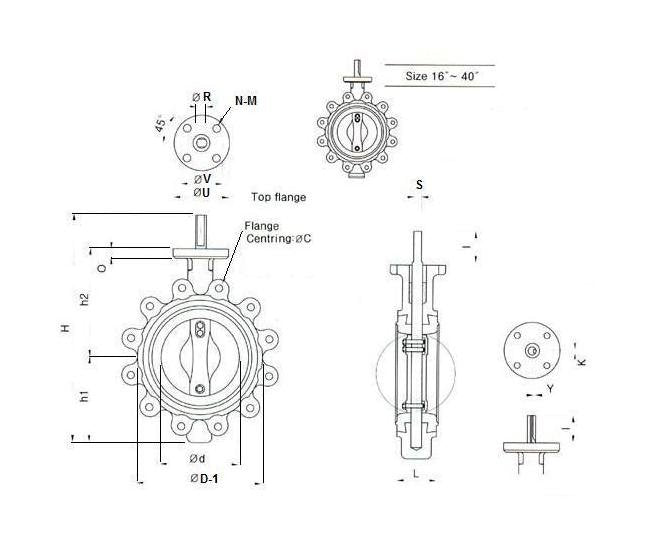

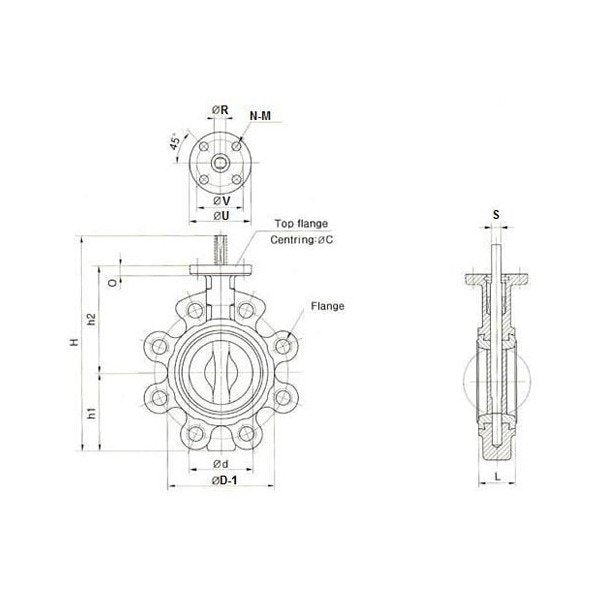

Specifications C
749.5 mm
Specifications D
560 mm
Specifications D 1
695 mm
Specifications H
1180 mm
Specifications H1
493 mm
Specifications H2
570 mm
Specifications Hole Diameter
1 1/4 in
Specifications L
154 mm
Specifications Number Of Holes
20
Specifications O
34 mm
Specifications Size
600 - 24"
Specifications Standard
ANSI
Specifications Stem I
60 mm
Specifications Stem K
10 mm
Specifications Stem R
50 mm
Specifications Stem Y
5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F16
Specifications Top Flange To Iso 5211 M Diameter
19 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
230 mm
Specifications Top Flange To Iso 5211 V
190 mm
Specifications Weight
283 kg
