ANSI Series 52 Full Lug Butterfly Valves
ANSI Series 52 Full Lug Butterfly Valves
SKU:VAL-d81a7b
Premium ANSI Series 52 Full Lug Butterfly Valves, sizes 2" to 40", meet ISO 5752 standards for durability and performance.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
ANSI Series 52 Full Lug Butterfly Valves
$699.99
Quantity: 1
Claim Your Seller Account
ANSI Series 52 Full Lug Butterfly Valves
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 52 Full Lug Butterfly Valves are crafted for precision and durability, conforming to ISO 5752 standards. Available in sizes ranging from 2" to 40", these valves feature a sturdy body material selection including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel. The disc, stem, and seat materials offer exceptional options such as Coated, Stainless Steel, K Monel, and various elastomers like EPDM and Viton. With a flawless Flange Connection to ANSI specifications and a weight of 29.30 kg, these valves are robust and reliable for diverse industrial applications.

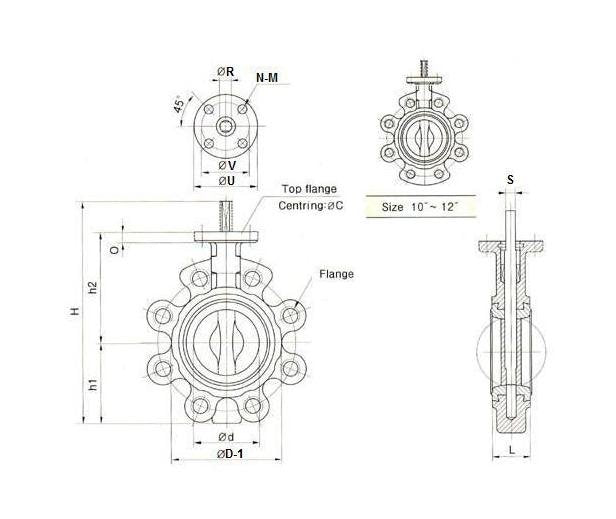

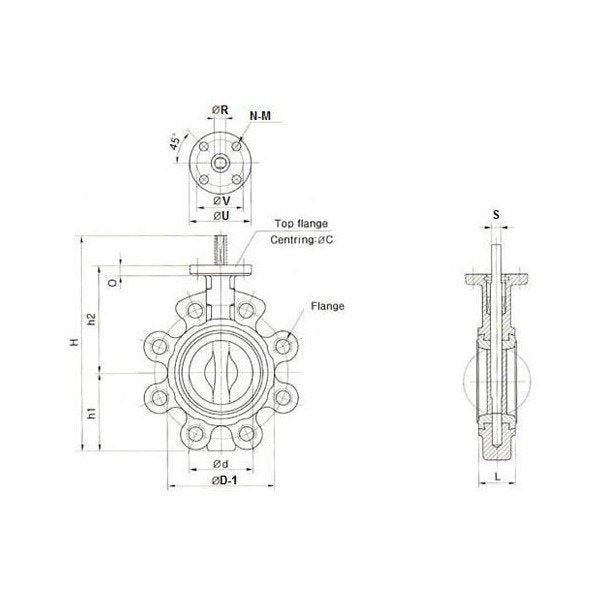

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications C
362 mm
Specifications D
248 mm
Specifications D 1
328 mm
Specifications H
519 mm
Specifications H1
218 mm
Specifications H2
267 mm
Specifications Hole Diameter
7/8 in
Specifications L
68 mm
Specifications Number Of Holes
12
Specifications O
15 mm
Specifications Size
250 - 10"
Specifications Standard
ANSI
Specifications Stem R
28 mm
Specifications Stem S
20 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F10
Specifications Top Flange To Iso 5211 M Diameter
12 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
29.30 kg
