ANSI Series 52 Full Lug Valves
ANSI Series 52 Full Lug Valves
SKU:VAL-fc3b63
Premium ANSI Series 52 Valves in sizes 2" to 40" with high-quality materials for precision fluid control.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
ANSI Series 52 Full Lug Valves
$799.99
Quantity: 1
Claim Your Seller Account
ANSI Series 52 Full Lug Valves
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 52 Full Lug Valves are designed for precision and reliability in fluid control applications. Compliant with ISO 5752 S-20 standards, these valves feature a range of sizes from 2" to 40" and are constructed from high-quality materials including cast iron, ductile iron, carbon steel, stainless steel, and bronze. With options for coated, ductile iron, stainless steel, or aluminum bronze discs, and K Monel or stainless steel stems, these valves offer exceptional performance and durability. The available seat materials of NBR, EPDM, Viton, Neoprene, and Silicone ensure tight seals and optimal functionality. Suitable for various industries, these valves are a dependable choice for both consumer and institutional buyers.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

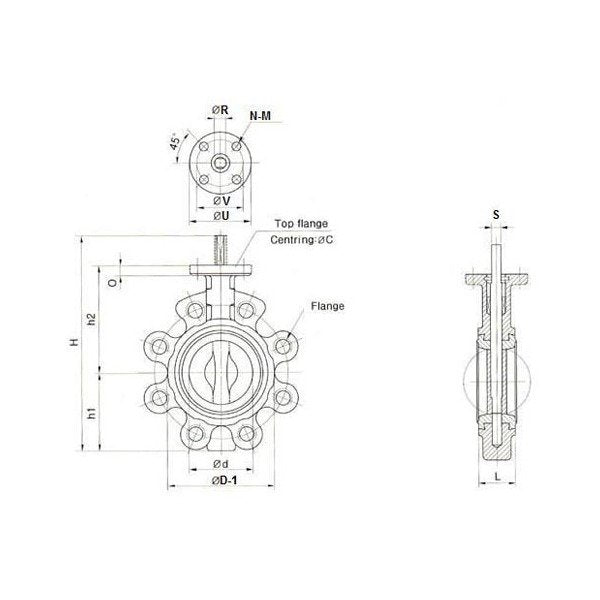

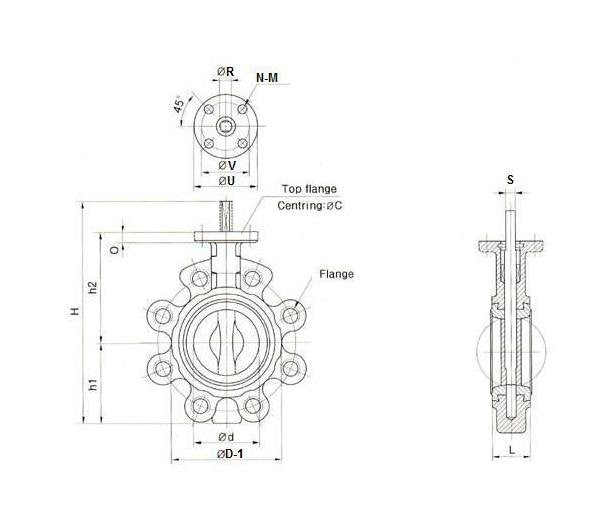

Specifications C
298.5 mm
Specifications D
198 mm
Specifications D 1
255 mm
Specifications H
412 mm
Specifications H1
163 mm
Specifications H2
217 mm
Specifications Hole Diameter
3/4 in
Specifications L
60 mm
Specifications Number Of Holes
8
Specifications O
13 mm
Specifications Size
200 - 8"
Specifications Standard
ANSI
Specifications Stem R
22 mm
Specifications Stem S
18 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
21.40 kg
