ANSI Series 52 Full Lug Valves

Name: ANSI Series 52 Full Lug Valves
Brand: World Wide Metric, Inc.
SKU: VAL-40b2da
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-40b2da

Premium ANSI Series 52 Full Lug Valves: ISO 5752 S-20 compliant, diverse material options, and sizes 2"-40" for reliable performance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ANSI Series 52 Full Lug Valves are meticulously crafted to meet ISO 5752 S-20 standards, offering exceptional reliability and durability. Available in sizes ranging from 2" to 40" with body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The valves feature coated or stainless steel discs, K Monel or stainless steel stems, and NBR, EPDM, Viton, Neoprene, or Silicone seat materials. With a robust construction and precise engineering, these valves ensure seamless operation and longevity.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Coated | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Neoprene | Silicone | Viton

Specifications Available Stem Material

K Monel | Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

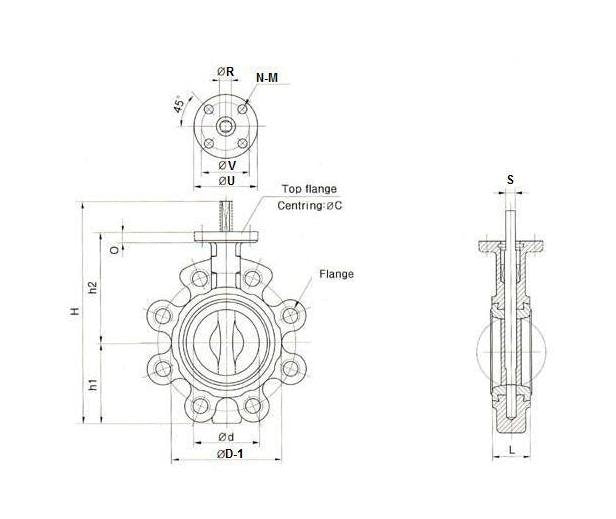

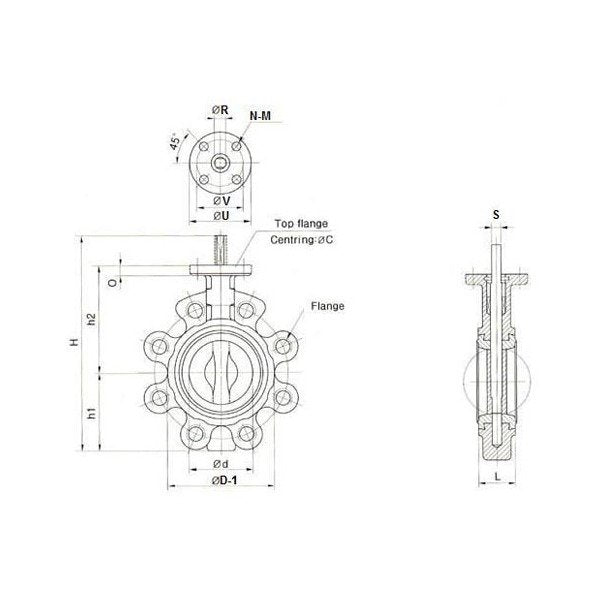

Specifications C

120.5 mm

Specifications D

52 mm

Specifications D 1

100 mm

Specifications H

235 mm

Specifications H1

72.5 mm

Specifications H2

130.5 mm

Specifications Hole Diameter

5/8 in

Specifications L

43 mm

Specifications Number Of Holes

Specifications O

11 mm

Specifications Size

050 - 2"

Specifications Standard

ANSI

Specifications Stem R

14 mm

Specifications Stem S

10 mm

Specifications Top Flange To Iso 5211 Flange Type Iso 5211

F07

Specifications Top Flange To Iso 5211 M Diameter

9 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

90 mm

Specifications Top Flange To Iso 5211 V

70 mm

Specifications Weight

4.1 kg
