ANSI Series 52 Full Lug Valves

Name: ANSI Series 52 Full Lug Valves
Brand: World Wide Metric, Inc.
SKU: VAL-f3ff76
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-f3ff76

High-quality ANSI Series 52 Full Lug Valves featuring ISO 5752 S-20 compliance, diverse material options, and precise Flange Connection.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ANSI Series 52 Full Lug Valves are meticulously designed to meet ISO 5752 S-20 standards. Available in sizes ranging from 50A to 1000A, these valves boast a robust construction with body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The disc, stem, and seat materials offer unparalleled versatility and durability. With a precise Flange Connection according to ANSISize, these valves ensure reliable performance across various industrial applications.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Coated | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Neoprene | Silicone | Viton

Specifications Available Stem Material

K Monel | Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

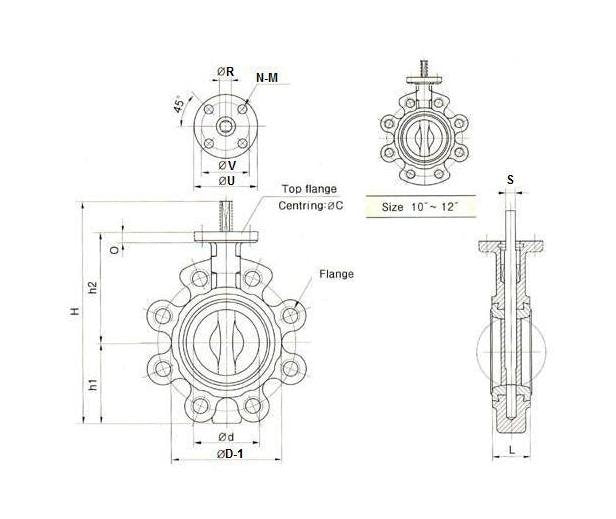

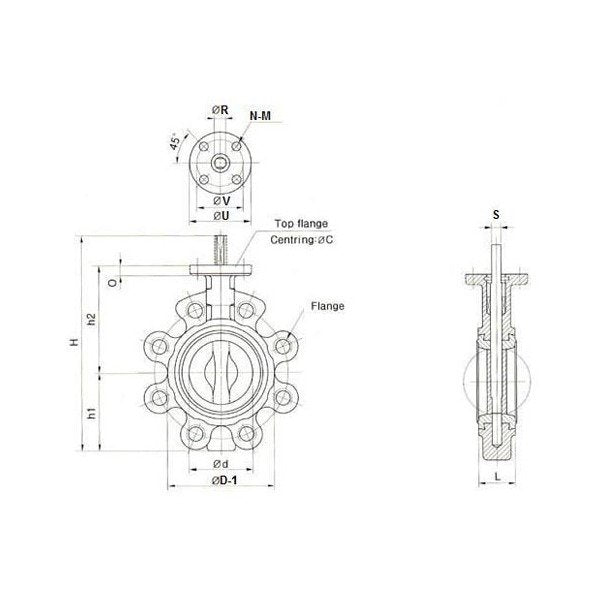

Specifications C

432 mm

Specifications D

298 mm

Specifications D 1

374 mm

Specifications H

588 mm

Specifications H1

249 mm

Specifications H2

295 mm

Specifications Hole Diameter

7/8 in

Specifications L

78 mm

Specifications Number Of Holes

Specifications O

15 mm

Specifications Size

300 - 12"

Specifications Standard

ANSI

Specifications Stem R

28 mm

Specifications Stem S

20 mm

Specifications Top Flange To Iso 5211 Flange Type Iso 5211

F10

Specifications Top Flange To Iso 5211 M Diameter

12 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

125 mm

Specifications Top Flange To Iso 5211 V

102 mm

Specifications Weight

44 kg
