ANSI Series 52 Full Lug Valves
ANSI Series 52 Full Lug Valves
SKU:VAL-6e2b71
Premium ANSI Series 52 Full Lug Valves designed for precision and durability in industrial applications.
Regular price
$1,250.99
Regular price
Sale price
$1,250.99
Unit price
per
Initiate Order
ANSI Series 52 Full Lug Valves
$1,250.99
Quantity: 1
Claim Your Seller Account
ANSI Series 52 Full Lug Valves
$1,250.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 52 Full Lug Valves are engineered to meet ISO 5752 S-20 face to face standards, ensuring precision and reliability. Available in sizes ranging from 2" to 40" and constructed with high-quality materials such as Bronze, Carbon Steel, and Stainless Steel. With options for disc, stem, seat, and packing materials, these valves offer versatile solutions for various industrial applications. The valves include essential specifications like diameters, weights, flange types, and tap hole details, making them ideal for government and institutional procurement needs.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

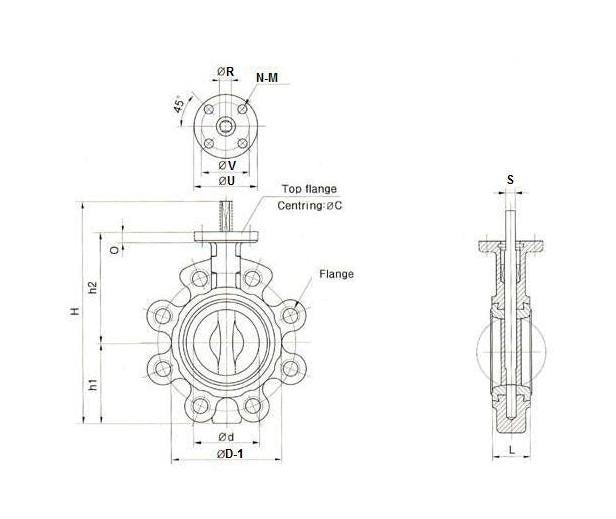

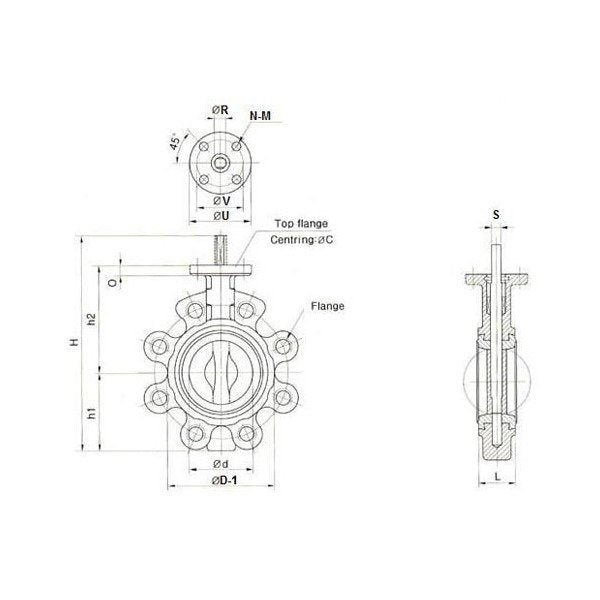

Specifications C
190.5 mm
Specifications D
100 mm
Specifications D 1
153 mm
Specifications H
292 mm
Specifications H1
99.5 mm
Specifications H2
160.5 mm
Specifications Hole Diameter
5/8 in
Specifications L
52 mm
Specifications Number Of Holes
8
Specifications O
11 mm
Specifications Size
100 - 4"
Specifications Standard
ANSI
Specifications Stem R
16 mm
Specifications Stem S
12 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
8.60 kg
