ANSI Series 52 Full Lug Valves

Name: ANSI Series 52 Full Lug Valves
Brand: World Wide Metric, Inc.
SKU: VAL-3d4c5e
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-3d4c5e

Premium ANSI Series 52 Full Lug Valves for precise fluid control in sizes 2" to 40", offering durability, versatility, and compliance with ANSI and ISO 5211 standards.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ANSI Series 52 Full Lug Valves combine precision engineering with durable materials to deliver exceptional performance in fluid control systems. Available in sizes ranging from 2" to 40" and constructed from high-quality Bronze, Carbon Steel, Cast Iron, Ductile Iron, or Stainless Steel, these valves offer versatility and reliability. Featuring Aluminum Bronze, Coated, Ductile Iron, or Stainless Steel disc options and EPDM, NBR, Neoprene, Silicone, or Viton seat materials, these valves ensure optimal flow control. With compliance to ANSI standards and ISO 5211 specifications, these valves are ideal for industrial, commercial, and institutional applications.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Coated | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Neoprene | Silicone | Viton

Specifications Available Stem Material

K Monel | Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

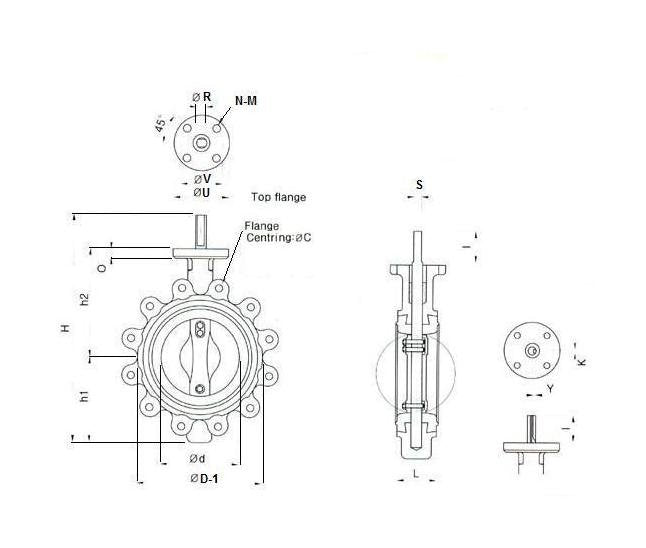

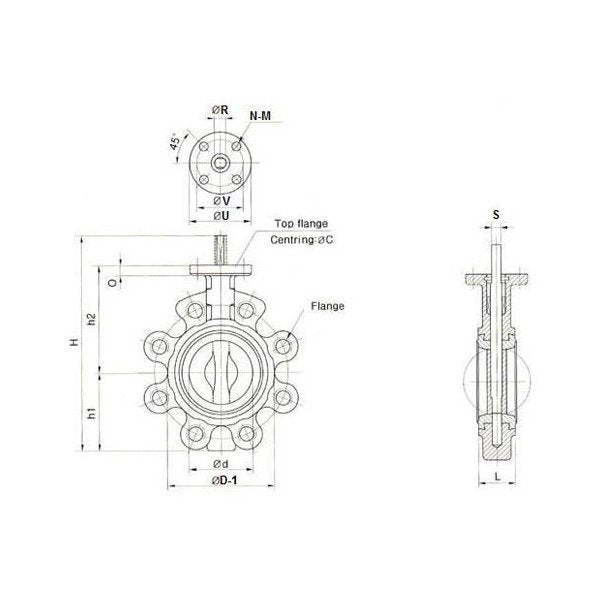

Specifications C

476 mm

Specifications D

327 mm

Specifications D 1

416 mm

Specifications H

675 mm

Specifications H1

271 mm

Specifications H2

324 mm

Specifications Hole Diameter

1 in

Specifications L

78 mm

Specifications Number Of Holes

Specifications O

20 mm

Specifications Size

350 - 14"

Specifications Standard

ANSI

Specifications Stem I

45 mm

Specifications Stem R

32 mm

Specifications Stem S

19.5 mm

Specifications Top Flange To Iso 5211 Flange Type Iso 5211

F10

Specifications Top Flange To Iso 5211 M Diameter

12 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

125 mm

Specifications Top Flange To Iso 5211 V

102 mm

Specifications Weight

62.2 kg

ANSI Series 52 Full Lug Valves
