ANSI Series 52 Full Lug Valves
ANSI Series 52 Full Lug Valves
SKU:VAL-69a8b4
Enhance industrial operations with precision-engineered ANSI Series 52 Full Lug Valves that meet ISO standards. Diverse materials and sizes available.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
ANSI Series 52 Full Lug Valves
$399.99
Quantity: 1
Claim Your Seller Account
ANSI Series 52 Full Lug Valves
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 52 Full Lug Valves are meticulously designed to meet ISO 5752 S-20 standards, ensuring superior performance in diverse industrial applications. Available in sizes ranging from 2" to 40", these valves feature a robust construction with body materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel. The discs are crafted from Aluminum Bronze, Coated, Ductile Iron, or Stainless Steel, providing exceptional durability. With seat materials like EPDM, NBR, Neoprene, Silicone, and Viton, these valves offer secure sealing in critical operations. Perfect for government and institutional procurement needs, these valves guarantee reliable service and compliance with stringent industry requirements.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

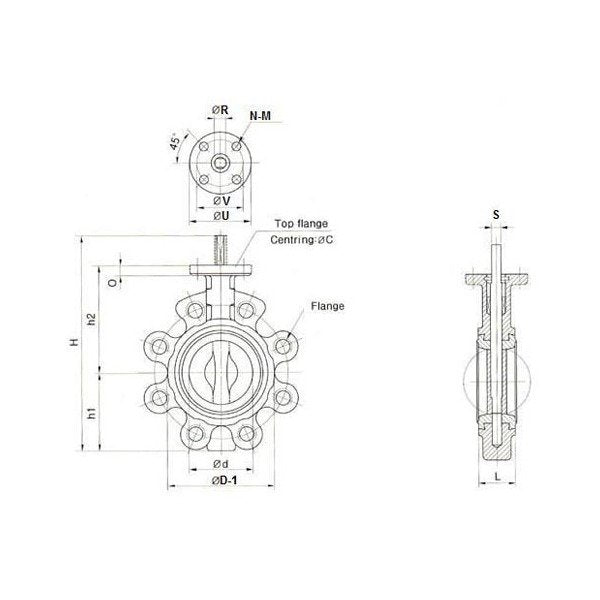

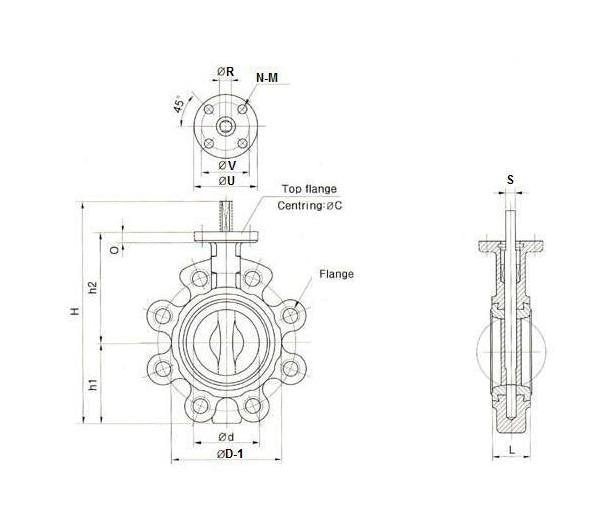

Specifications C
152.5 mm
Specifications D
80 mm
Specifications D 1
126 mm
Specifications H
255 mm
Specifications H1
82 mm
Specifications H2
143 mm
Specifications Hole Diameter
5/8 in
Specifications L
46 mm
Specifications Number Of Holes
4
Specifications O
11 mm
Specifications Size
080 - 3"
Specifications Standard
ANSI
Specifications Stem R
14 mm
Specifications Stem S
10 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
6.8 kg
