ANSI Series 52 Full Lug Valves
ANSI Series 52 Full Lug Valves
SKU:VAL-697159
Precision-engineered Full Lug Valves meeting ISO standards, offering durability and reliability in various sizes and materials.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
ANSI Series 52 Full Lug Valves
$1,299.99
Quantity: 1
Claim Your Seller Account
ANSI Series 52 Full Lug Valves
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 52 Full Lug Valves are precision-engineered to meet the exacting standards of ISO 5752 S-20. With a wide size range from 2" to 40" and body material options including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, these valves offer exceptional durability and performance. Featuring disc materials like Aluminum Bronze, Ductile Iron, and Stainless Steel, along with versatile seat and stem material choices, these valves ensure reliability and longevity in demanding industrial environments.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

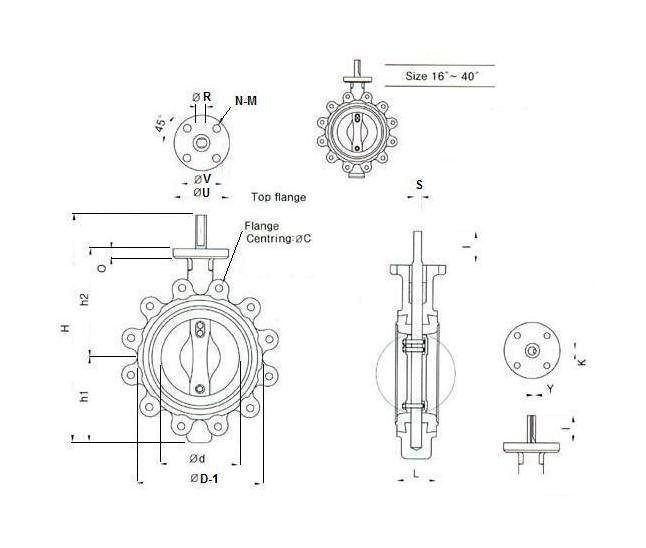

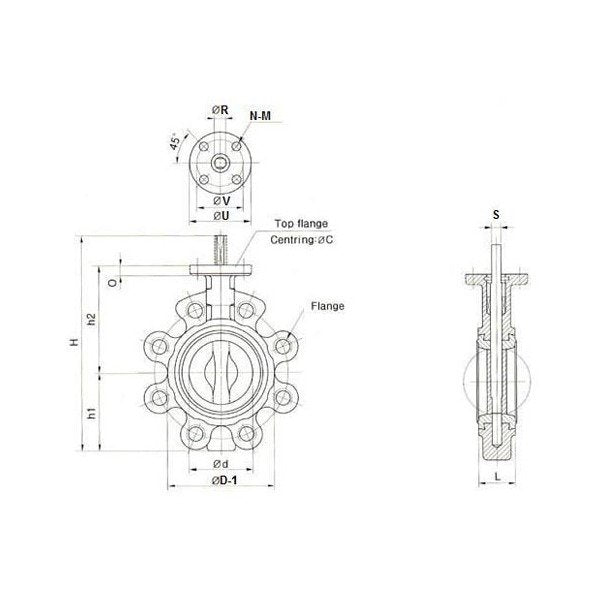

Specifications C
1200 mm
Specifications D
990 mm
Specifications D 1
1125 mm
Specifications H1
790 mm
Specifications H2
842 mm
Specifications Hole Diameter
1 1/2 in
Specifications L
200 mm
Specifications Number Of Holes
36
Specifications O
40 mm
Specifications Size
1000 - 40"
Specifications Standard
ANSI
Specifications Stem I
140 mm
Specifications Stem K
14 mm
Specifications Stem R
90 mm
Specifications Stem Y
5.5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F30
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
250 mm
Specifications Weight
1221 kg
