ANSI Series 52 Full Lug Valves
ANSI Series 52 Full Lug Valves
SKU:VAL-db324c
Discover reliable ANSI Series 52 Full Lug Valves for industrial fluid control. Available in various sizes and materials for durability and peak performance.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
ANSI Series 52 Full Lug Valves
$2,499.99
Quantity: 1
Claim Your Seller Account
ANSI Series 52 Full Lug Valves
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 52 Full Lug Valves offer a robust solution for industrial fluid control. With a size range from 2" to 40" and body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, these valves ensure durability and performance. Equipped with discs made of Coated, Ductile Iron, Stainless Steel, or Aluminum Bronze, along with K Monel or Stainless Steel stems and NBR, EPDM, Viton seating materials, these valves are designed to meet the highest industry standards, providing reliable and efficient operation.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

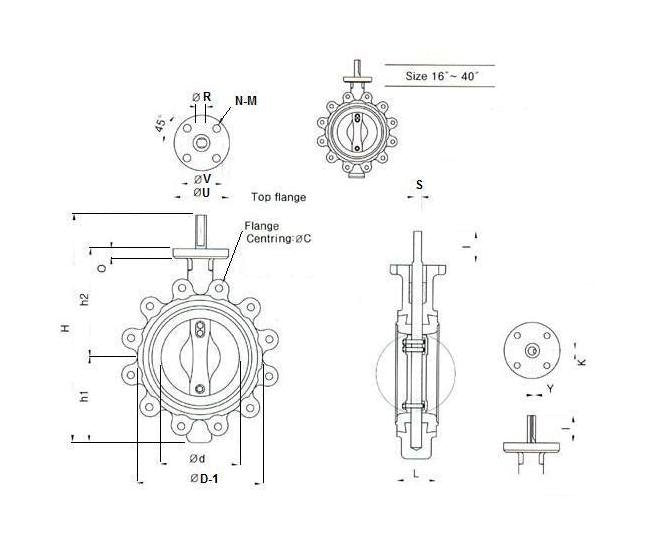

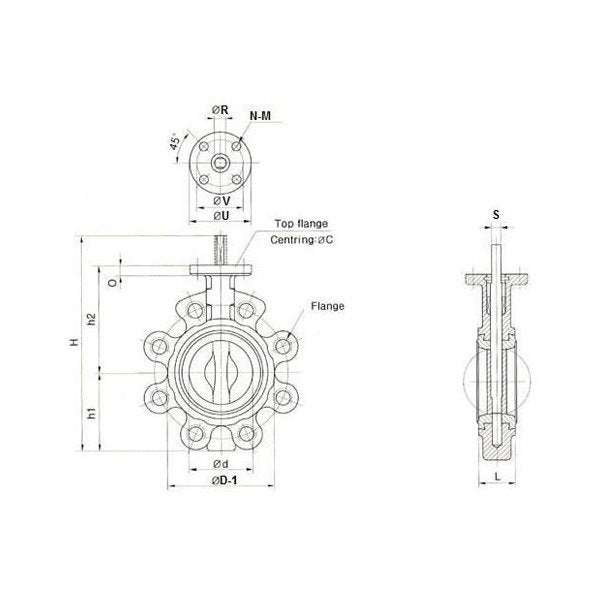

Specifications C
1086 mm
Specifications D
900 mm
Specifications D 1
1020 mm
Specifications H
1625 mm
Specifications H1
690 mm
Specifications H2
671 mm
Specifications Hole Diameter
1 1/2 in
Specifications L
180 mm
Specifications Number Of Holes
32
Specifications O
38 mm
Specifications Size
900 - 36"
Specifications Standard
ANSI
Specifications Stem I
140 mm
Specifications Stem K
14 mm
Specifications Stem R
80 mm
Specifications Stem Y
5.5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F30
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
250 mm
Specifications Weight
874 kg
