The ANSI Series 52 Full Lug Valves offer versatile solutions for various applications with a face-to-face conformance to ISO 5752 S-20. Available in sizes ranging from 2" to 40" and crafted from materials like Cast Iron, Ductile Iron, Stainless Steel, Bronze, and Carbon Steel, these valves ensure durability and performance. With options for different disc, stem, seat, and packing materials, they provide flexibility to meet diverse operational needs. Ideal for institutional and industrial settings requiring reliable valves that adhere to ANSI standards.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

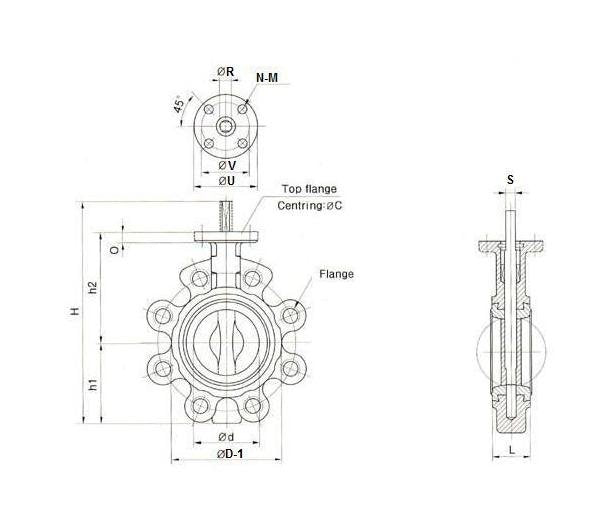

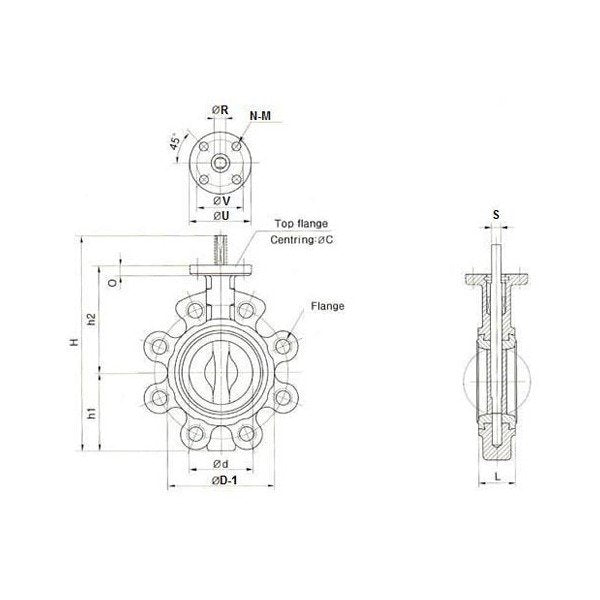

Specifications C
139.5 mm
Specifications D
65 mm
Specifications D 1
112 mm
Specifications H
237 mm
Specifications H1
75.5 mm
Specifications H2
129,5 mm
Specifications Hole Diameter
5/8 in
Specifications L
46 mm
Specifications Number Of Holes
4
Specifications O
11 mm
Specifications Size
065 - 2-1/2"
Specifications Standard
ANSI
Specifications Stem R
14 mm
Specifications Stem S
10 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
5.5 kg
