The ANSI Series 52 Full Lug Valves are meticulously engineered to meet the rigorous demands of institutional applications. Featuring a body material selection of Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, these valves ensure durability and reliability. The valve sizes range from 2" to 40" (50A to 1000A) with disc materials available in Aluminum Bronze, Coated, Ductile Iron, and Stainless Steel. Stem options include K Monel and Stainless Steel, while seat and packing materials such as EPDM, NBR, Neoprene, Silicone, and Viton guarantee optimal performance and longevity. Compliant with ANSI standards, these valves are designed for precise control and seamless operation in institutional settings.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

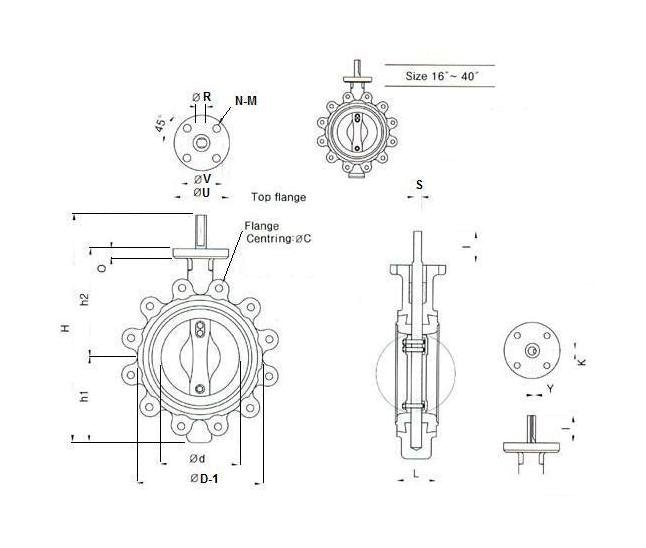

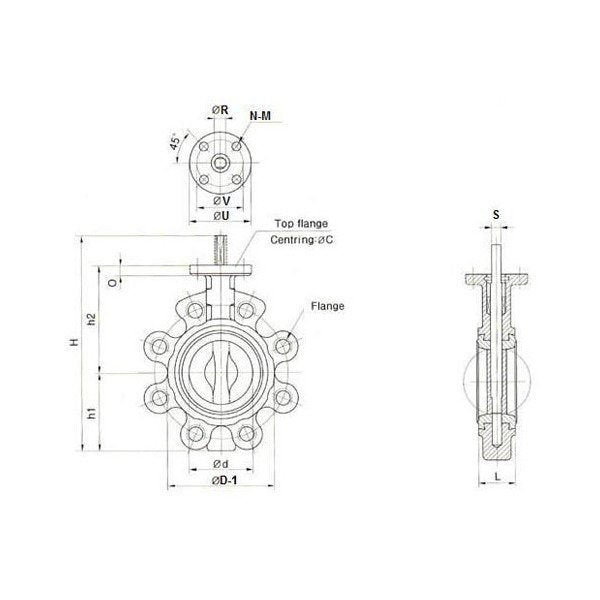

Specifications C
978 mm
Specifications D
785 mm
Specifications D 1
920 mm
Specifications H
1495 mm
Specifications H1
630 mm
Specifications H2
669 mm
Specifications Hole Diameter
1 1/2 in
Specifications L
180 mm
Specifications Number Of Holes
28
Specifications O
35 mm
Specifications Size
800 - 32"
Specifications Standard
ANSI
Specifications Stem I
140 mm
Specifications Stem K
14 mm
Specifications Stem R
80 mm
Specifications Stem Y
5.5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F25
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
300 mm
Specifications Top Flange To Iso 5211 V
250 mm
Specifications Weight
677 kg
