ANSI Series 52 Full Lug Valves with Multiple Material Options

Name: ANSI Series 52 Full Lug Valves with Multiple Material Options
Brand: World Wide Metric, Inc.
SKU: VAL-8cea0f
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-8cea0f

High-quality ANSI Series 52 Full Lug Valves with multiple material options for dependable performance in industrial settings.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

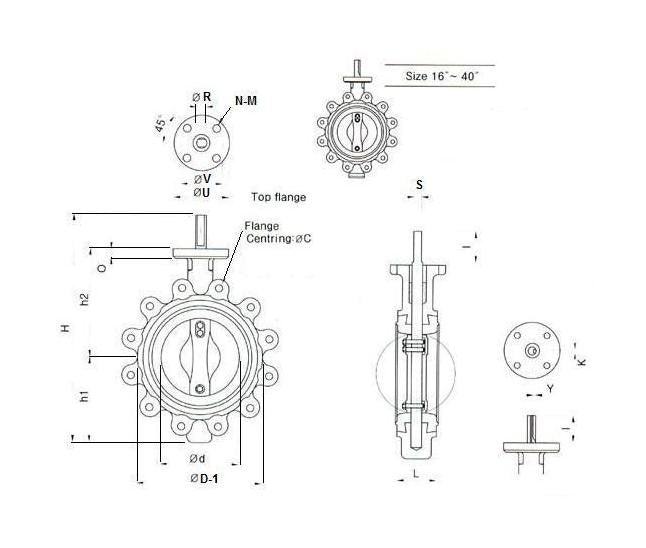

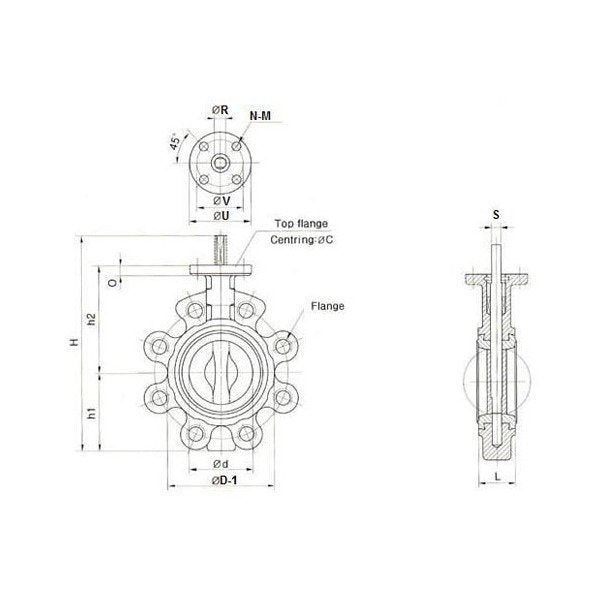

The ANSI Series 52 Full Lug Valves are precision-engineered to meet the ISO 5752 S-20 face-to-face dimensions. Available in sizes ranging from 2" to 40", these valves feature body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. Choose from a variety of disc, stem, seat, and packaging materials to suit your specific application needs, ensuring reliable performance and longevity. With compliance to ANSI standards, these valves are ideal for industrial, commercial, and institutional applications.

Product Specifications

Specifications Available Disc Material

Aluminum Bronze | Coated | Ductile Iron | Stainless Steel

Specifications Available Packing Material

EPDM | NBR | Viton

Specifications Available Seat Material

EPDM | NBR | Neoprene | Silicone | Viton

Specifications Available Stem Material

K Monel | Stainless Steel

Specifications Body Material

Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

Specifications C

578 mm

Specifications D

438 mm

Specifications D 1

535 mm

Specifications H

877 mm

Specifications H1

366 mm

Specifications H2

406 mm

Specifications Hole Diameter

1 1/8 in

Specifications L

114 mm

Specifications Number Of Holes

Specifications O

23 mm

Specifications Size

450 - 18"

Specifications Standard

ANSI

Specifications Stem I

60 mm

Specifications Stem K

10 mm

Specifications Stem R

38 mm

Specifications Stem Y

5 mm

Specifications Top Flange To Iso 5211 Flange Type Iso 5211

F14

Specifications Top Flange To Iso 5211 M Diameter

18 mm

Specifications Top Flange To Iso 5211 N Number Of Tap Holes

Specifications Top Flange To Iso 5211 U

175 mm

Specifications Top Flange To Iso 5211 V

140 mm

Specifications Weight

153 kg
