ANSI Series 55 Double Flanged Valves
ANSI Series 55 Double Flanged Valves
SKU:VAL-48e672
High-quality ANSI Series 55 Double Flanged Valves meeting ISO 5752 S-20 standards. Sizes: 2" - 40". Various materials for durability.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
ANSI Series 55 Double Flanged Valves
$349.99
Quantity: 1
Claim Your Seller Account
ANSI Series 55 Double Flanged Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 55 Double Flanged Valves are meticulously engineered to meet the rigorous requirements of ISO 5752 S-20 standards. Available in sizes ranging from 2" to 40", these valves boast a robust construction with body materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel. The discs are crafted from premium materials like Aluminum Bronze, Coated, Ductile Iron, and Stainless Steel, ensuring durability and optimal performance. With Stem Materials options of K Monel and Stainless Steel, and Seat Materials in EPDM, NBR, Neoprene, Silicone, and Viton, these valves offer versatility and reliability for a wide range of applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

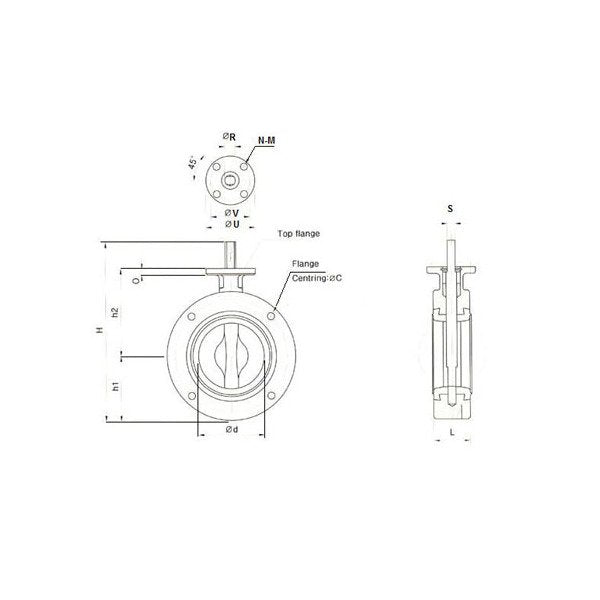

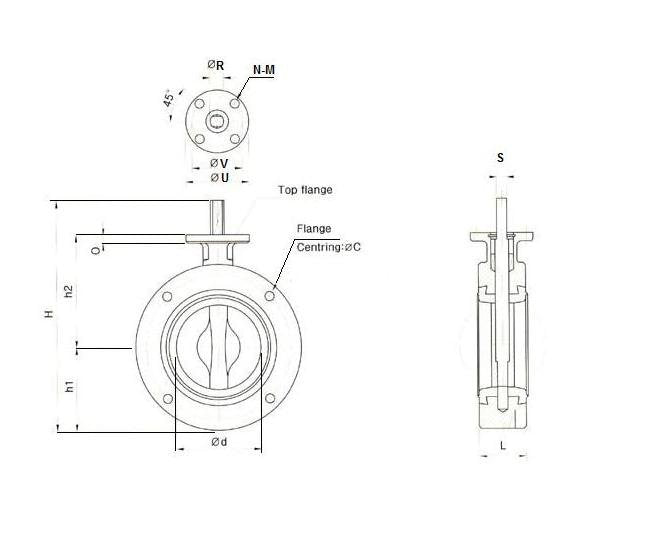

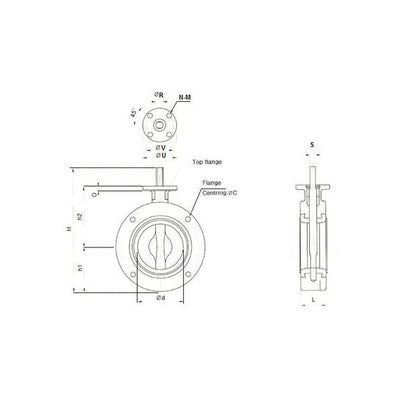

Specifications C
190.5 mm
Specifications D
100 mm
Specifications H
298 mm
Specifications H1
105 mm
Specifications H2
160.5 mm
Specifications Hole Diameter
5/8 in
Specifications L
52 mm
Specifications Number Of Holes
8
Specifications O
11 mm
Specifications Size
100 - 4"
Specifications Standard
ANSI
Specifications Stem R
16 mm
Specifications Stem S
12 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
14.5 kg
