ANSI Series 55 Double Flanged Valves
ANSI Series 55 Double Flanged Valves
SKU:VAL-0ea816
High-quality Series 55 Double Flanged Valves meeting ISO 5752 S-20 and ANSI standards, available in sizes 2"-40".
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
ANSI Series 55 Double Flanged Valves
$799.99
Quantity: 1
Claim Your Seller Account
ANSI Series 55 Double Flanged Valves
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 55 Double Flanged Valves offer exceptional quality and performance for a wide range of industrial applications. Built with precision and durability in mind, these valves feature a variety of body, disc, stem, seat, and packing material options to suit diverse requirements. Meeting ISO 5752 S-20 and ANSI standards, these valves are available in sizes ranging from 2" to 40", ensuring compatibility with various systems. Trust in the reliability and longevity of these valves for your critical operations.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

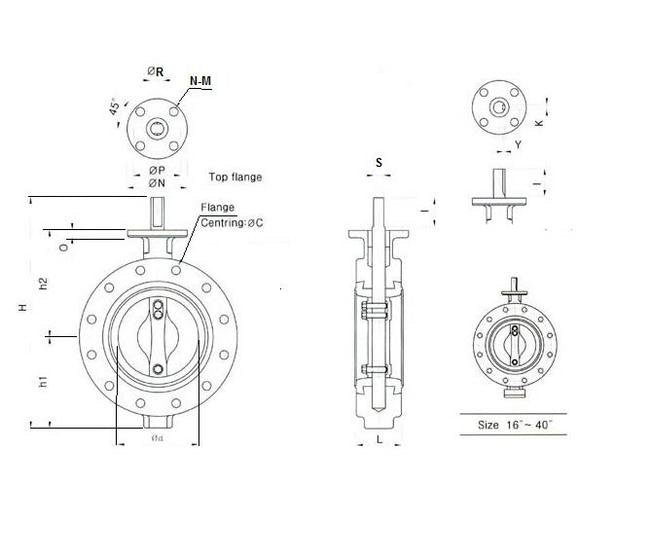

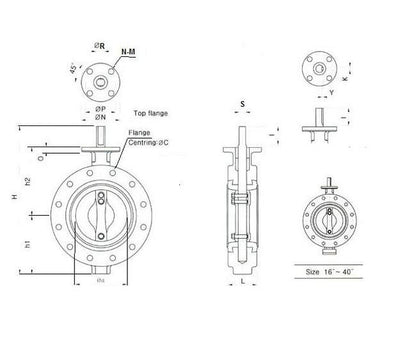

Specifications C
635 mm
Specifications D
477 mm
Specifications H
1008 mm
Specifications H1
421 mm
Specifications H2
485 mm
Specifications Hole Diameter
1 1/8 in
Specifications L
127 mm
Specifications Number Of Holes
20
Specifications O
34 mm
Specifications Size
500 - 20"
Specifications Standard
ANSI
Specifications Stem I
60 mm
Specifications Stem K
10 mm
Specifications Stem R
45 mm
Specifications Stem Y
5 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F16
Specifications Top Flange To Iso 5211 M Diameter
19 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
6
Specifications Top Flange To Iso 5211 U
230 mm
Specifications Top Flange To Iso 5211 V
190 mm
Specifications Weight
161 kg
