ANSI Series 55 Double Flanged Valves
ANSI Series 55 Double Flanged Valves
SKU:VAL-e0dba4
Premium ANSI Series 55 Double Flanged Valves, compliant with ISO standards, featuring a range of high-quality materials for durability and performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
ANSI Series 55 Double Flanged Valves
$299.99
Quantity: 1
Claim Your Seller Account
ANSI Series 55 Double Flanged Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 55 Double Flanged Valves are expertly crafted to meet ISO 5752 S-20 standards with a size range from 2" to 40". These valves feature a variety of body materials including Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel, ensuring durability and reliability. With options for Coated, Ductile Iron, Stainless Steel, and Aluminum Bronze discs, along with K Monel and Stainless Steel stem materials, these valves offer exceptional performance in diverse industrial applications. The available seat materials of EPDM, NBR, Neoprene, Silicone, and Viton, combined with EPDM, NBR, and Viton packing materials, guarantee a tight seal and long-lasting functionality.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

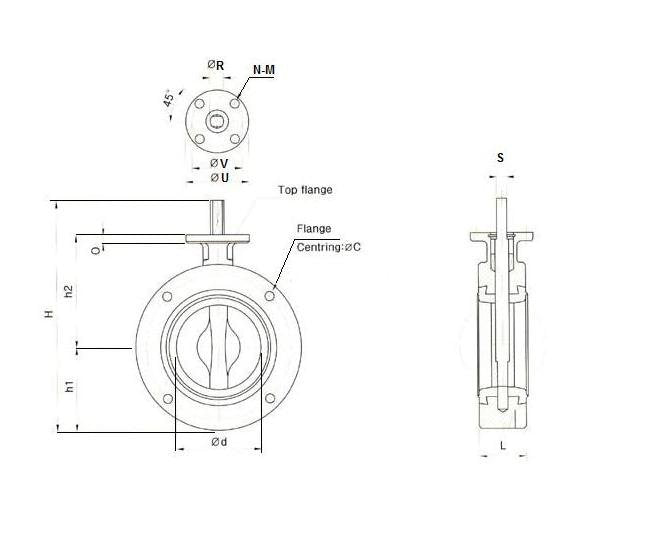

Specifications C
241.5 mm
Specifications D
150 mm
Specifications H
363 mm
Specifications H1
140 mm
Specifications H2
191 mm
Specifications Hole Diameter
3/4 in
Specifications L
56 mm
Specifications Number Of Holes
8
Specifications O
12 mm
Specifications Size
150 - 6"
Specifications Standard
ANSI
Specifications Stem R
19 mm
Specifications Stem S
15 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
19.8 kg
