ANSI Series 55 Double Flanged Valves
ANSI Series 55 Double Flanged Valves
SKU:VAL-d64417
High-quality ANSI Series 55 Double Flanged Valves for industrial applications. Available in various sizes and durable materials to ensure reliable performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
ANSI Series 55 Double Flanged Valves
$399.99
Quantity: 1
Claim Your Seller Account
ANSI Series 55 Double Flanged Valves
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 55 Double Flanged Valves are precision-engineered for reliable performance in industrial settings. With a face to face compliance with ISO 5752 S-20 and ANSI flange connection, these valves are available in a size range of 2" to 40" with body material options including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The disc, stem, seat, and packaging materials are carefully selected for durability and optimal functionality. Suitable for a wide range of applications, these valves offer robust construction and efficient operation, meeting the stringent standards of institutional and government procurement.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

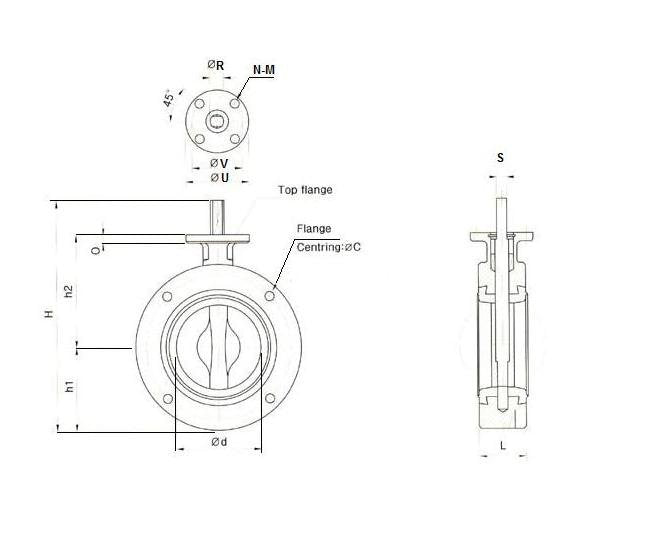

Specifications C
98.5 mm
Specifications D
40 mm
Specifications H
205 mm
Specifications H1
58 mm
Specifications H2
124 mm
Specifications Hole Diameter
1/2 in
Specifications L
33 mm
Specifications Number Of Holes
4
Specifications O
10 mm
Specifications Size
040 - 1-1/2"
Specifications Standard
ANSI
Specifications Stem R
10 mm
Specifications Stem S
8 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
6.2 kg
