ANSI Series 55 Double Flanged Valves - Industrial Grade
ANSI Series 55 Double Flanged Valves - Industrial Grade
SKU:VAL-0f0614
Industrial-grade ANSI Series 55 Double Flanged Valves - Reliable, Durable, and Compliant with ISO & ANSI Standards
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
ANSI Series 55 Double Flanged Valves - Industrial Grade
$899.99
Quantity: 1
Claim Your Seller Account
ANSI Series 55 Double Flanged Valves - Industrial Grade
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ANSI Series 55 Double Flanged Valves are engineered for industrial applications, featuring a Size Range of 50A to 1000A and Body Materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. With Disc, Stem, and Seat material options meeting the highest standards, these valves offer exceptional durability and performance. Compliant with ISO 5752 S-20 and ANSI standards, these valves ensure reliable operation and longevity in demanding environments.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Coated | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Neoprene | Silicone | Viton
Specifications Available Stem Material
K Monel | Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

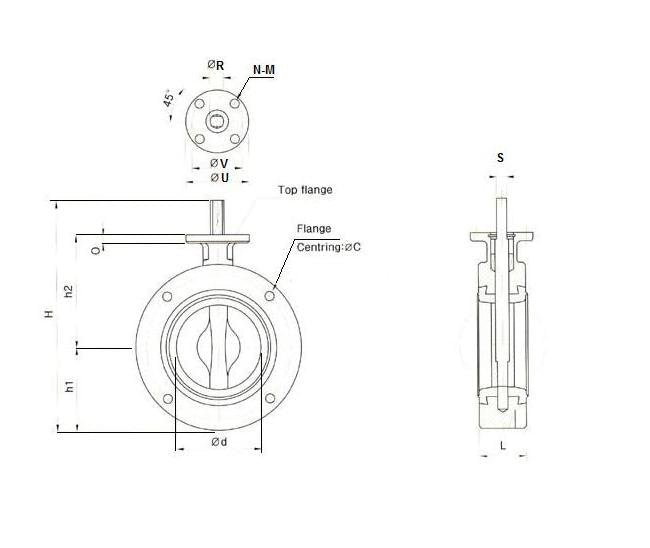

Specifications C
152.5 mm
Specifications D
80 mm
Specifications H
266 mm
Specifications H1
92.5 mm
Specifications H2
143 mm
Specifications Hole Diameter
5/8 in
Specifications L
46 mm
Specifications Number Of Holes
4
Specifications O
11 mm
Specifications Size
080 - 3"
Specifications Standard
ANSI
Specifications Stem R
14 mm
Specifications Stem S
10 mm
Specifications Top Flange To Iso 5211 Flange Type Iso 5211
F07
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
10.2 kg
