Antistatic Cover Tape for Polystyrene Carrier

Name: Antistatic Cover Tape for Polystyrene Carrier
Brand: Tek Pak, Inc.
SKU: TAP-91c87f
Price: 49.99 USD
Availability: OutOfStock

SKU:TAP-91c87f

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

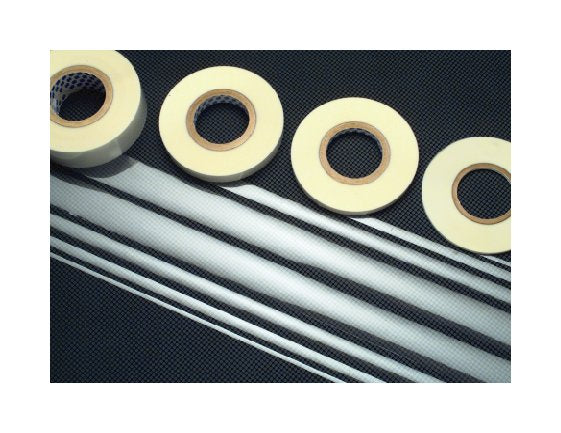

Tek Pak is proud to offer NEPTCO ST10 brand of heat-activated cover tape. It is clear polyester film coated with heat-activated adhesive and has stable anti-static properties on both sides. NEPTCO cover tape resists tearing and provides a reliable seal to polystyrene carrier tapes.Clear polyester film coated with heat activated adhesive and anti-static properties.

Product Specifications

Benefits

Wide range of sealing temperaturesConsistent seal within EIA 481 requirementsProtects surface mounted componentsStable antistatic properties

Compatibility

After testing the variety of cover tapes in the marketplace, Tek Pak has determined that NEPTCO ST10 is the premium cover tape that provides the best sealing characteristics with our polystyrene carrier tapes. Carrier tape can affect the quality of the bond with the cover tape as much as the cover tape itself, so it is important that the two are properly matched. When you seal NEPTCO ST10 cover tape onto Tek Pak polystyrene carrier tape, you can be assured of a tested, consistent seal within EIA-481 requirements.

Construction

0.001" Heat activated adhesive0.001" Polyester film (polyethylene terephthalate)

Storage

ST10 cover tapes should be stored in a controlled environment. The optimum conditions defined below will yield a shelf life of two years from the manufacturing date found on the core label and ensure the maximum service life of the product.Temperature: 27 °C a 10°Humidity: 50% R.H. a 20

Technical Specs Average Haze

50 %

Technical Specs Break Strength Width

20 lb/in

Technical Specs Color

Natural

Technical Specs Inside Diameter Cores

3 in

Technical Specs Luminous Transmittance

91 %

Technical Specs Minimum Elongation

100 %

Technical Specs Overall Thickness

0.0022

Technical Specs Pressure

30 to 40 psi

Technical Specs Resistivity

Adhesive Side 1010 ohms/square | Film Side 1010 ohms/square

Technical Specs Seal Rail Width

0.015 to 0.020 in

Technical Specs Splice Free Lengths

300 Meters +6/-0 | 500 Meters +10/-0

Technical Specs Temperature

150 to 200 ºC

Technical Specs Time

0.25 to 0.40 s

Technical Specs Type

Heat-Activated | PSA

Technical Specs Width Tolerance

0.10 mm
