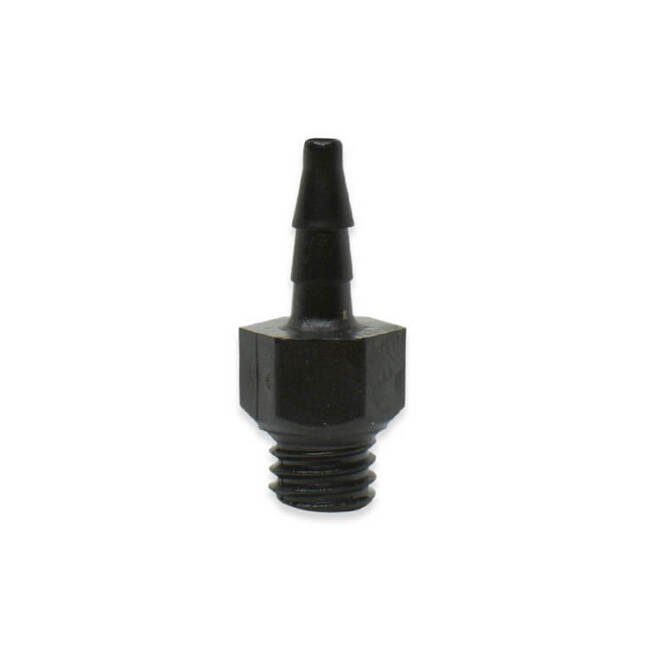

AO-AG Series 1/16 Inch (in) Barb Size and 0.030 Inch (in) Orifice Size Adapter Fitting
AO-AG Series 1/16 Inch (in) Barb Size and 0.030 Inch (in) Orifice Size Adapter Fitting
SKU:AOI-fc9176
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
AO-AG Series 1/16 Inch (in) Barb Size and 0.030 Inch (in) Orifice Size Adapter Fitting
$49.99
Quantity: 1
Claim Your Seller Account
AO-AG Series 1/16 Inch (in) Barb Size and 0.030 Inch (in) Orifice Size Adapter Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
AO-IG series is a thread-to-barb fitting made of FDA-approved polysufone with an integral precision orifice. The threads are 10-32 inch male UNF threads and the barbs are either 1/8 inch or 1/16 inch. The maximum operating pressure is 100 psi.
Product Specifications
Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Barb Size
1/16 in
Technical Specs Industry Standards
Food and Drug Administration (FDA)
Technical Specs Material
Polysulfone
Technical Specs Maximum Operating Pressure
100 psi
Technical Specs Orifice Size
0.030 in
Technical Specs Series
AO-IG
Technical Specs Thread Size
10-32
Technical Specs Thread Type
Male Unified National Fine (UNF)
