AP6612-DL Industrial Battery Charger
AP6612-DL Industrial Battery Charger
SKU:AP6-73126a
Advanced industrial battery charger with high efficiency & built-in diagnostics for reliable charging in transit & stationary applications.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
AP6612-DL Industrial Battery Charger
$4,999.99
Quantity: 1
Claim Your Seller Account
AP6612-DL Industrial Battery Charger
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AP6612-DL Industrial Battery Charger is a high-efficiency, high-frequency charger designed for transit, stationary backup, and energy storage applications. With a maximum power of 15 kW, it supports battery stack voltages up to 48V and 208V AC input. This charger is factory settable for various battery types and features built-in diagnostics, LED display for operating parameters, and comprehensive protection features ensuring safe and reliable charging. Compact, rugged, and made in the USA, the AP6612-DL sets the standard for performance and efficiency in mobile and stationary charging solutions.
Product Specifications
Additional Information Additional Information

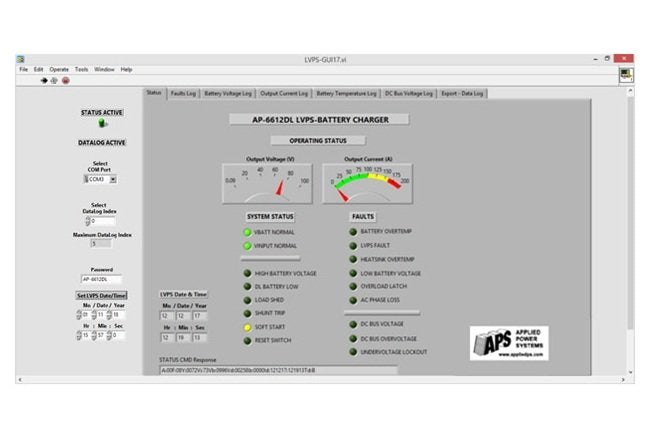

Ruggedized high-frequency battery charger for mobile or stationary applications.Designed and built in the USA. The AP6612 Charger sets the standard for rugged, reliable, high performance, mobile battery chargers.The AP6612 Battery Charger is factory settable to charge batteries from 12V to 96V, up to 200 Amps. Standard features include >90% efficiency, reverse battery protection, battery charging with temperature compensation, auxiliary load-shed operation and seamless transition between constant-current and constant-voltage mode of operations.The AP6612 Battery Charger monitors battery temperature and automatically compensates the charger output based upon temperature feedback.The AP6612 Battery Charger is microprocessor controlled for fast, accurate charging of mobile, stationary or backup batteries. It is compact, light weight and easy to install. This charger features high efficiency operation which requires less input power than traditional chargers. This allows more AC power to remain available for other connected AC loads in mobile and transit applications.Options include USB and RS485 communication ports for remote monitoring of charger operation and internal data logger with nonvolatile memory to store operating history for data download.
Display Functions Display Functions
LED Display and discrete LEDs provide battery charger status indication for the following:Charger Output VoltageCharger Output CurrentNormal Operating StatusCharger Faults
Features Features
High efficiency, high frequency charger.For Transit Rail, Stationary Backup and Energy Storage ApplicationsHigh Power 15 kW in Compact FootprintRugged, Reliable, Field Proven ConstructionFactory Settable for 24 V, 48 V & 72 V BatteryBattery Temperature Sensor CompensationBuilt-in Diagnostics and Fault ProtectionLED display of operating parameters.Seamless CC to CV mode transition.Output Current LimitingAux Low Voltage Power Supply Output with automatic Load Shed of non-critical loadsOptional communication ports with Pc-based Remote Monitoring software.Optional data logger.
Model Ap6612 Configuration Ordering Guide Battery Type Tt
L1=LA | L1=Li-Ion | L2=AGM | L2=LiFePO | N1=NiMH | N2=NiCd
Model Ap6612 Configuration Ordering Guide Optional Communication
Blank=None | C1=RS485 | C2=USB
Model Ap6612 Configuration Ordering Guide Optional Datalogger In
Blank=None | D=Datalogger Installed
Protection Features Protection Features
LED Display and discrete LEDs provide battery charger status indication for the following:Output Over-Voltage ProtectionOutput Over-Current ProtectionOver-Temperature ProtectionOutput Current LimitingInput and Output Soft-Start
Technical Specs Alternating Current Input Voltage
208 V
Technical Specs Brands
Applied Power Systems, Inc.
Technical Specs Direct Current Battery Stack Voltage
48 V
Technical Specs Efficiency
> 90 %
Technical Specs Maximum Power
15 kW
