AP6612(DL) Industrial Battery Charger

Name: AP6612(DL) Industrial Battery Charger
Brand: Applied Power Systems, Inc.
SKU: AP6-7ccb69
Price: 849.99 USD
Availability: OutOfStock

SKU:AP6-7ccb69

Powerful and efficient industrial battery charger for transit and stationary energy storage applications.

$849.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

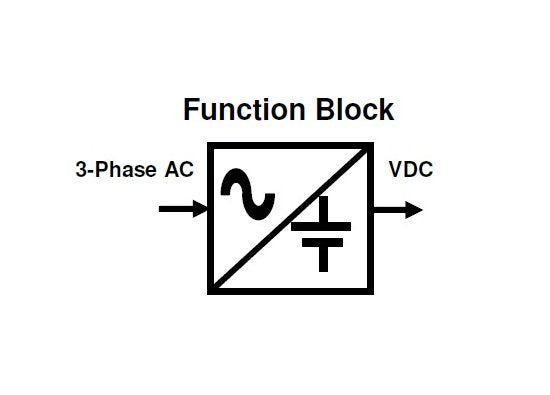

The AP6612(DL) Industrial Battery Charger is a high-efficiency, high-frequency charger designed for transit and stationary energy storage applications. With a compact footprint, it delivers up to 100 VDC output from 208-480 VAC input, offering superior performance compared to traditional chargers. Featuring built-in diagnostics, fault protection, LED display, and multiple protection features, this charger is factory-settable for 12V to 96V batteries. It meets rigorous industry standards for efficiency, reliability, and performance, making it an ideal choice for demanding applications.

Product Specifications

Additional Information Additional Information

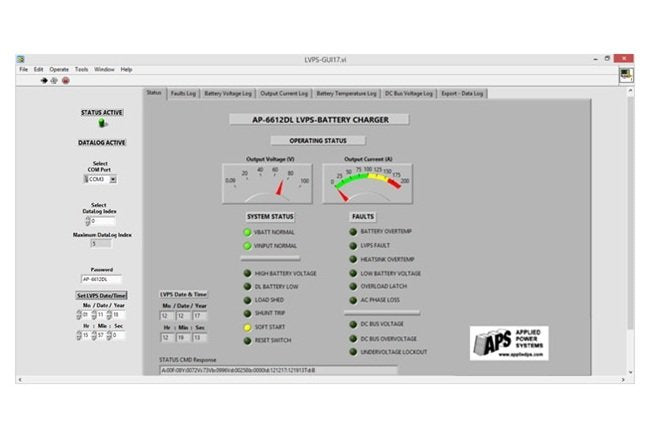

Ruggedized high-frequency battery charger for mobile or stationary applications.Designed and built in the USA. The AP6612 Charger sets the standard for rugged, reliable, high performance, mobile battery chargers.The AP6612 Battery Charger is factory settable to charge batteries from 12V to 96V, up to 200 Amps. Standard features include >90% efficiency, reverse battery protection, battery charging with temperature compensation, auxiliary load-shed operation and seamless transition between constant-current and constant-voltage mode of operations.The AP6612 Battery Charger monitors battery temperature and automatically compensates the charger output based upon temperature feedback.The AP6612 Battery Charger is microprocessor controlled for fast, accurate charging of mobile, stationary or backup batteries. It is compact, light weight and easy to install. This charger features high efficiency operation which requires less input power than traditional chargers. This allows more AC power to remain available for other connected AC loads in mobile and transit applications.Options include USB and RS485 communication ports for remote monitoring of charger operation and internal data logger with nonvolatile memory to store operating history for data download.

Display Functions Display Functions

LED Display and discrete LEDs provide battery charger status indication for the following:Charger Output VoltageCharger Output CurrentNormal Operating StatusCharger Faults

Features Features

High efficiency, high frequency charger.For Transit Rail, Stationary Backup and Energy Storage ApplicationsHigh Power 15 kW in Compact FootprintRugged, Reliable, Field Proven ConstructionFactory Settable for 24 V, 48 V & 72 V BatteryBattery Temperature Sensor CompensationBuilt-in Diagnostics and Fault ProtectionLED display of operating parameters.Seamless CC to CV mode transition.Output Current LimitingAux Low Voltage Power Supply Output with automatic Load Shed of non-critical loadsOptional communication ports with Pc-based Remote Monitoring software.Optional data logger.

Model Ap6612 Configuration Ordering Guide Battery Type Tt

Model Ap6612 Configuration Ordering Guide Optional Communication

Blank=None | C1=RS485 | C2=USB

Model Ap6612 Configuration Ordering Guide Optional Datalogger In

Blank=None | D=Datalogger Installed

Protection Features Protection Features

LED Display and discrete LEDs provide battery charger status indication for the following:Output Over-Voltage ProtectionOutput Over-Current ProtectionOver-Temperature ProtectionOutput Current LimitingInput and Output Soft-Start

Technical Specs Alternating Current Input Voltage

480 V

Technical Specs Brands

Applied Power Systems, Inc.

Technical Specs Direct Current Battery Stack Voltage

12 V

Technical Specs Efficiency

> 90 %

Technical Specs Maximum Power

4 kW
