APM Hexseal® 1113/42 Standard Lever-Actuated Circuit Breaker Back-of-Panel Mounting Boot

Name: APM Hexseal® 1113/42 Standard Lever-Actuated Circuit Breaker Back-of-Panel Mounting Boot
Brand: APM Hexseal
SKU: APM-5c9430
Price: 49.99 USD
Availability: OutOfStock

SKU:APM-5c9430

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

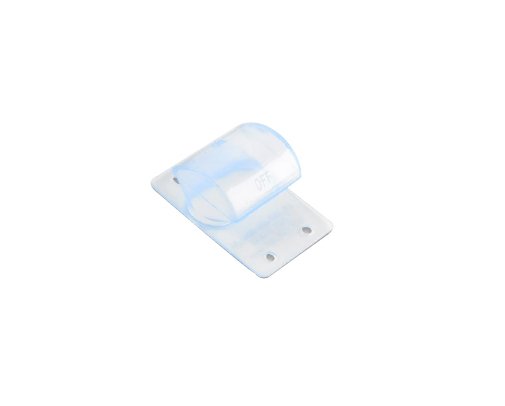

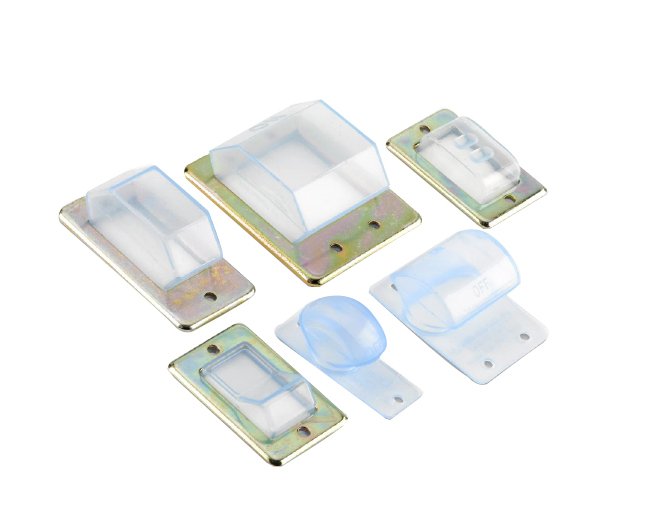

Circuit breakers perform a very valuable role in all sorts of different control systems, protecting equipment from short circuits and electrical overloads. APM Hexseal®'s lever-actuated circuit breaker boots are designed to protect these critical devices, extending breaker life-spans and in turn helping to ensure long-term security of the system as a whole. Created from APM Hexseal®'s transparent silicone RUBRGLAS™, which is specially formulated to maintain clarity and prevent yellowing over time, these boots allow for easy device operation and status recognition while maintaining APM Hexseal®'s exceptional environmental protection from weather exposure, wash downs, salt water, lubricants, solvents, dust, dirt, grease and any number of other environmental elements that could potentially threaten electrical components. Our two distinct boot styles are Back-of-Panel, secured behind the breaker mounting panel, and Front-of-Panel, mounted to the outside of a panel using a sturdy metal frame. All designs feature a continuous sealing rib around the underside of the flange to ensure a consistent, reliable seal.

Product Specifications

Additional Information

Both styles are secured using APM Hexseal®'s self-sealing Seelskrews®.Much like our Circuit Breaker Boots, APM Hexseal®'s Rocker Boots are often molded from transparent silicone RUBRGLAS™ which makes for easy viewing of the switch position. The majority of our Rocker Boots do not include an insert or frame, and are designed to install on the switch prior to the switch installation.APM Hexseal®'s UL and ULC Recognized Components conform to UL Standard 50. Contact us for a complete list of our Recognized Components and ratings.

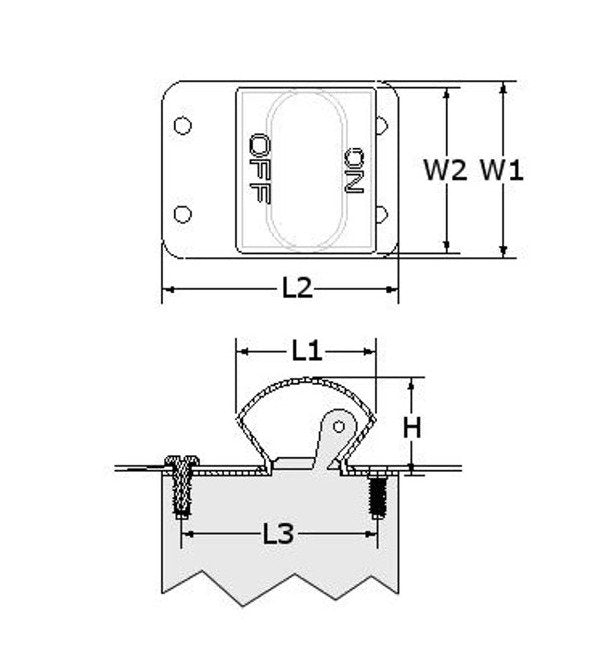

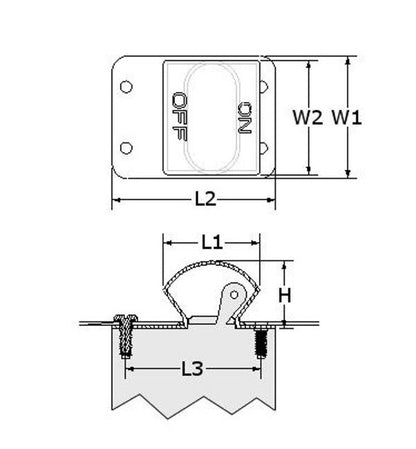

Dimensions Height H

0.813 in | 20.65 mm

Dimensions Length 1 L1

1.188 in | 30.18 mm

Dimensions Length 2 L2

2.000 in | 50.80 mm

Dimensions Length 3 L3

1.660 in | 42.16 mm

Dimensions Width 1 W1

1.500 in | 38.10 mm

Dimensions Width 2 W2

1.406 in | 35.71 mm

Material Specifications Elastomer

APM Hexseal® RUBRGLAS™ (Transparent Silicone) Conforms to A-A-59588 | Class 3A | GR50 (Durometer Options Available.)

Material Specifications Enclosure Protection

Back-of-Panel Mounted - International Electrotechnical Commission (IEC) Ingress Protection (IP66) | Ingress Protection (IP68) (A dual IP code rating indicates that both ratings apply.)

Material Specifications Resistant To

Material Specifications Shelf Life

Excess of 25 Years

Material Specifications Temperature Range

-103 to 400 ºF | -75 to 204 ºC

Note

Proudly manufacturing in the USA for 70 years.Please contact us directly for additional parts and alternative size options.Metric Seelskrews® are also available by request.

Specifications Applications

Circuit Breakers

Specifications Industry Standards

Underwriters Laboratories (UL) | Underwriters Laboratories of Canada (ULC) | Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) | Restriction of Hazardous Substances (RoHS) | Defense Federal Acquisition Regulation Supplement (DFARS) Compliant | International Organization for Standardization (ISO 9001:2008) Registered

Specifications Marks

On/Off

Specifications Number Of Poles

Specifications Standard Seelskrews Included

4 Count | S6-32 x 5/16 in 2701

Specifications Type

Back-of-Panel
