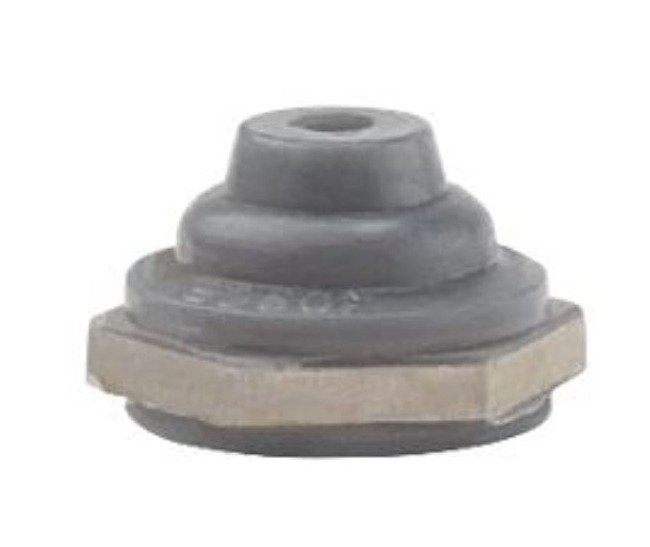

APM Hexseal® 1132/33 M12x1 Standard Threaded Half and Open Toggle Boots with Exposed Actuator

Name: APM Hexseal® 1132/33 M12x1 Standard Threaded Half and Open Toggle Boots with Exposed Actuator
Brand: APM Hexseal
SKU: APM-2e2420
Price: 49.99 USD
Availability: OutOfStock

SKU:APM-2e2420

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

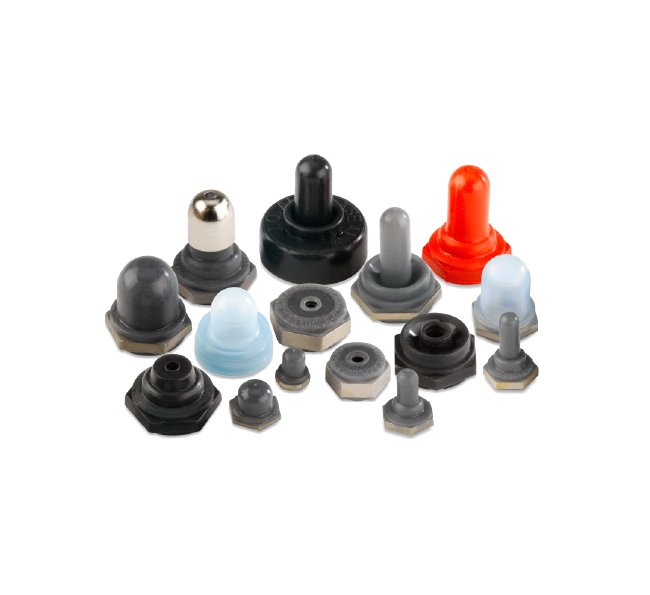

Toggle switches have been widely used across all sorts of industries for a very long time. With their straightforward, back and forth actuation making them easy to operate, toggle switches have continued to be one of the more common styles of switch used today. The long life of the toggle switch has given APM Hexseal® the opportunity to develop a variety of designs over the years, incorporating different sealing techniques to cater to a broad range of switch applications and installation environments. The majority of APM Hexseal® toggle boots are a single piece design, molded from silicone over a threaded mounting nut. Our designs include fully enclosed toggle boots that cover the entirety of a switch, as well as half boots that leave a portion of the toggle bat exposed. No matter the variation, all APM Hexseal® designs include our signature sealing rib that ensures a secure seal with the mounting panel, and are extremely effective toggle switch sealing solutions.

Product Specifications

Additional Information

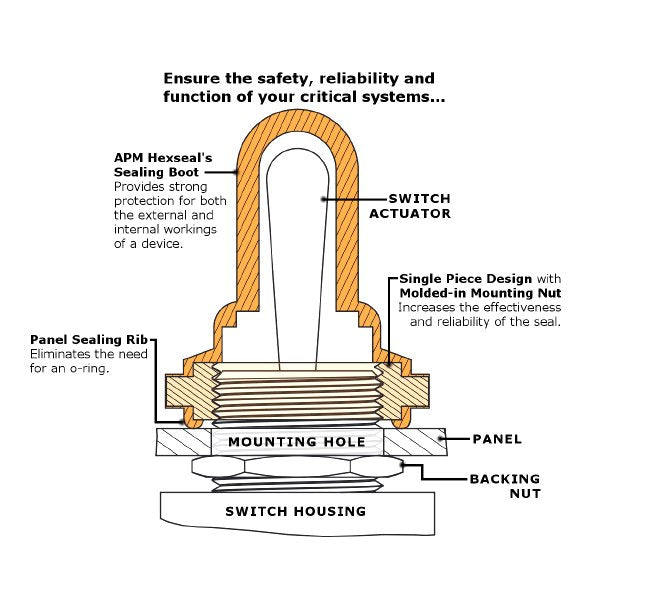

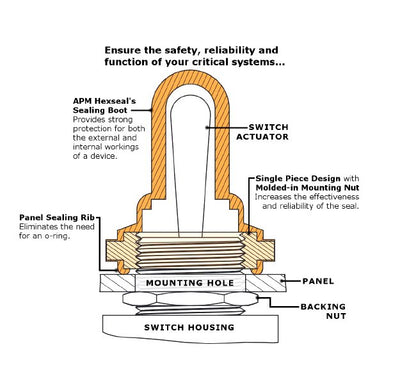

Any unsealed electrical devices mounted to a control panel or piece of electrical equipment can fall victim to the impacts of hostile environmental factors if not properly protected. In this context, "environmental" is a very broad term, encompassing any number of possible factors, including weather conditions like rain, snow or prolonged wind and sun exposure, pressure changes from submersion in fluids or changes in altitude, contaminants such as water, ice, salt, air, dust, dirt, grease, chemicals, and even spilled beverages.APM Hexseal®'s Sealing Boots are designed to protect the vulnerable areas of a device, and create a seal against the mounting panel, providing strong protection for the device itself, and for the overall function of the system.APM Hexseal®'s UL and ULC Recognized Components conform to UL Standard 50. Contact us for a complete list of our Recognized Components and ratings.

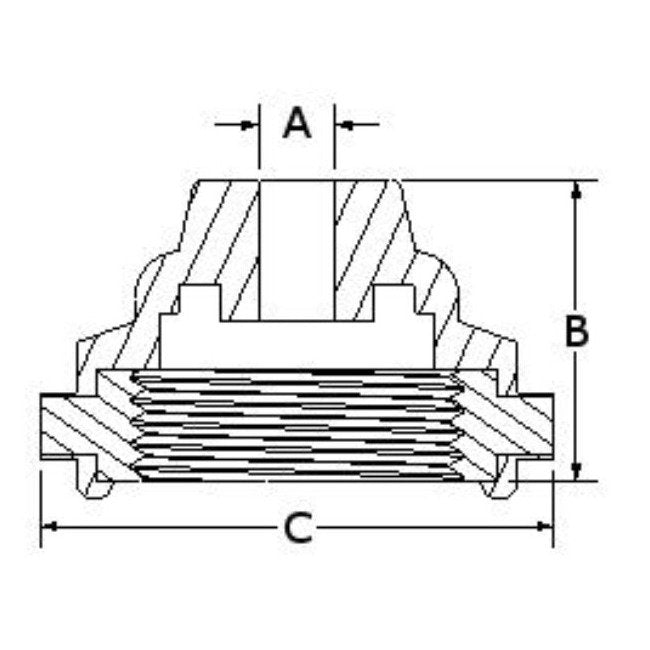

Dimensions Height B

0.437 in | 11.10 mm

Dimensions Hex Sizeouter Diameter C

0.625 in | 15.88 mm

Dimensions Throat Diameter A

0.093 in | 2.36 mm

Material Specifications Elastomer

Silicone Conforms to A-A-59588 | Class 3A | GR50 (Durometer Options Available.) | Gray (Additional Colors Available.)

Material Specifications Enclosure Protection

International Electrotechnical Commission (IEC) Ingress Protection (IP66) | Ingress Protection (IP68) (A dual IP code rating indicates that both ratings apply.)

Material Specifications Mounting Nut Material

Brass | Nickel Plated

Material Specifications Resistant To

Material Specifications Shelf Life

Excess of 25 Years

Material Specifications Temperature Range

-103 to 400 ºF | -75 to 204 ºC

Note

Proudly manufacturing in the USA for 70 years.Please contact us directly for additional parts and alternative size options.

Specifications Applications

Toggle Switch

Specifications Class

Specifications Industry Standards

Underwriters Laboratories (UL) | Underwriters Laboratories of Canada (ULC) | Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) | Restriction of Hazardous Substances (RoHS) | Defense Federal Acquisition Regulation Supplement (DFARS) Compliant | International Organization for Standardization (ISO 9001:2008) Registered

Specifications Maximum Toggle Bat Diameter

0.240 in | 6.10 mm

Specifications Minimum Toggle Bat Diameter

0.115 in | 2.92 mm

Specifications System Of Measurement

Metric

Specifications Thread Size

M12 x 1
