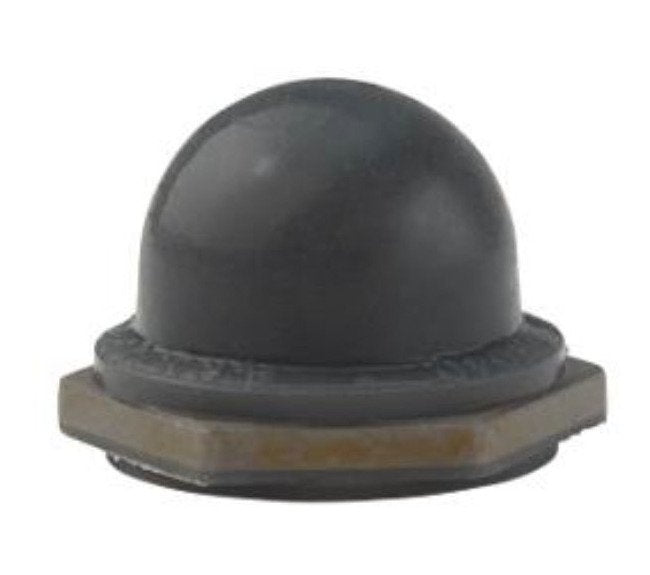

APM Hexseal® 1238/1 SS Standard Threaded Pushbutton Boot with Hex-Shaped Insert
APM Hexseal® 1238/1 SS Standard Threaded Pushbutton Boot with Hex-Shaped Insert
SKU:APM-43b643
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
APM Hexseal® 1238/1 SS Standard Threaded Pushbutton Boot with Hex-Shaped Insert
$49.99
Quantity: 1
Claim Your Seller Account
APM Hexseal® 1238/1 SS Standard Threaded Pushbutton Boot with Hex-Shaped Insert
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

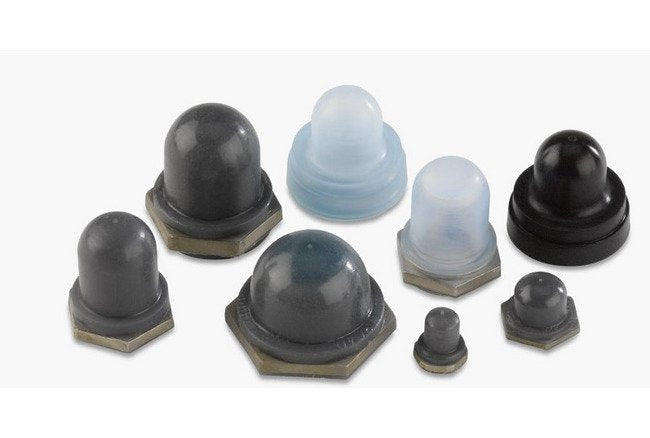

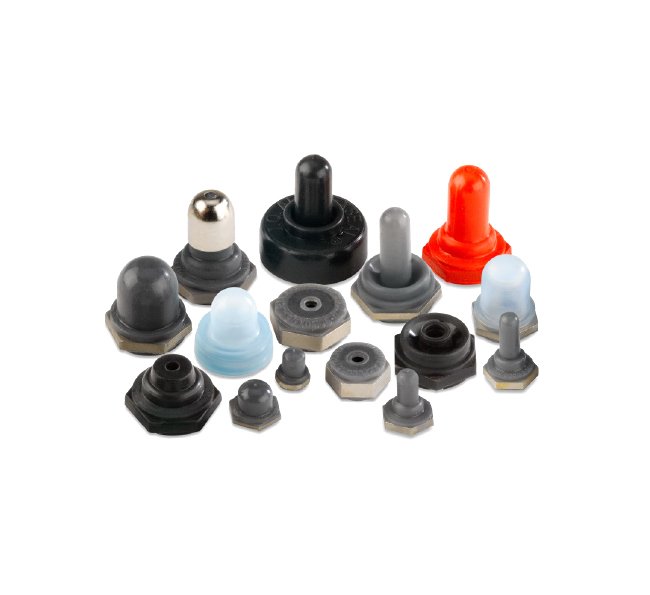

As the name clearly suggests, a pushbutton switch is actuated using a push, or press, motion. Though this is very different from the actuation motion of a toggle switch, the mounting method is often much the same, making it possible to use a similarly designed silicone boot with a threaded mounting nut. Looking to protect a more complicated pushbutton switch that cannot be sealed with a standard threaded boot? That's not a problem. Available in both full boot and half boot varieties, APM Hexseal® Pushbutton Boots provide excellent sealing protection for pushbutton switches of all styles and sizes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

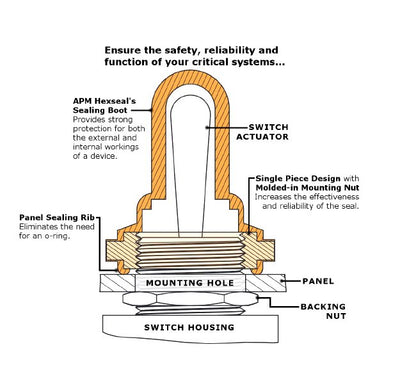

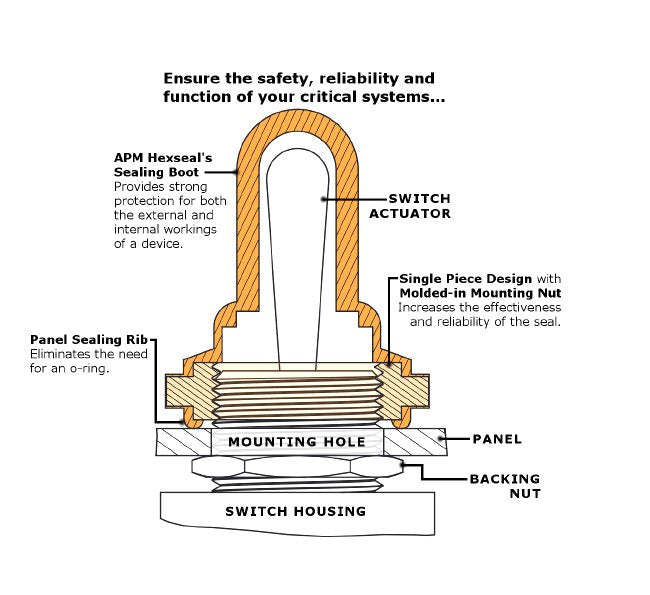

Any unsealed electrical devices mounted to a control panel or piece of electrical equipment can fall victim to the impacts of hostile environmental factors if not properly protected. In this context, "environmental" is a very broad term, encompassing any number of possible factors, including weather conditions like rain, snow or prolonged wind and sun exposure, pressure changes from submersion in fluids or changes in altitude, contaminants such as water, ice, salt, air, dust, dirt, grease, chemicals, and even spilled beverages.APM Hexseal®'s Sealing Boots are designed to protect the vulnerable areas of a device, and create a seal against the mounting panel, providing strong protection for the device itself, and for the overall function of the system.APM Hexseal®'s UL and ULC Recognized Components conform to UL Standard 50. Contact us for a complete list of our Recognized Components and ratings.

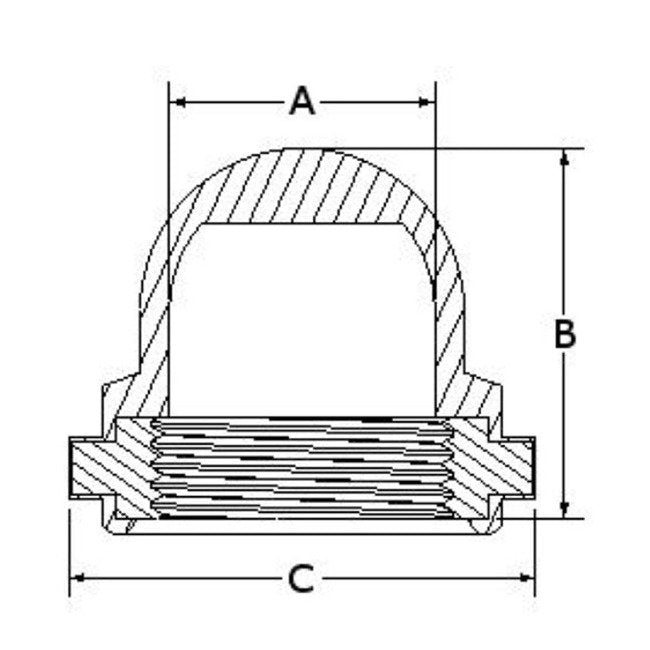

Dimensions Height B
1.008 in | 25.60 mm
Dimensions Hex Sizeouter Diameter C
0.750 in | 19.05 mm
Dimensions Internal Diameter A
0.422 in | 10.72 mm
Material Specifications Elastomer
Silicone Conforms to A-A-59588 | Class 3A | GR50 (Durometer Options Available.) | Gray (Additional Colors Available.)
Material Specifications Enclosure Protection
International Electrotechnical Commission (IEC) Ingress Protection (IP66) | Ingress Protection (IP68) (A dual IP code rating indicates that both ratings apply.)
Material Specifications Mounting Nut Material
Brass | Nickel Plated
Material Specifications Resistant To
Dust | Fungus | Lubricating Oils | Most Acids | Ozone | Salt Spray | Splash | Sunlight | Weather
Material Specifications Shelf Life
Excess of 25 Years
Material Specifications Temperature Range
-103 to 400 ºF | -75 to 204 ºC
Note
Proudly manufacturing in the USA for 70 years.Armored Pushbutton Boot.Please contact us directly for additional parts and alternative size options.
Specifications Applications
Pushbutton Switch
Specifications Class
2B
Specifications Industry Standards
Underwriters Laboratories (UL) | Underwriters Laboratories of Canada (ULC) | Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) | Restriction of Hazardous Substances (RoHS) | Defense Federal Acquisition Regulation Supplement (DFARS) Compliant | International Organization for Standardization (ISO 9001:2008) Registered
Specifications Maximum Plunger Height Above Bushing
0.306 in | 7.77 mm
Specifications System Of Measurement
Imperial
Specifications Thread Size
15/32-32
Specifications Thread Type
Unified Special (UNS)
