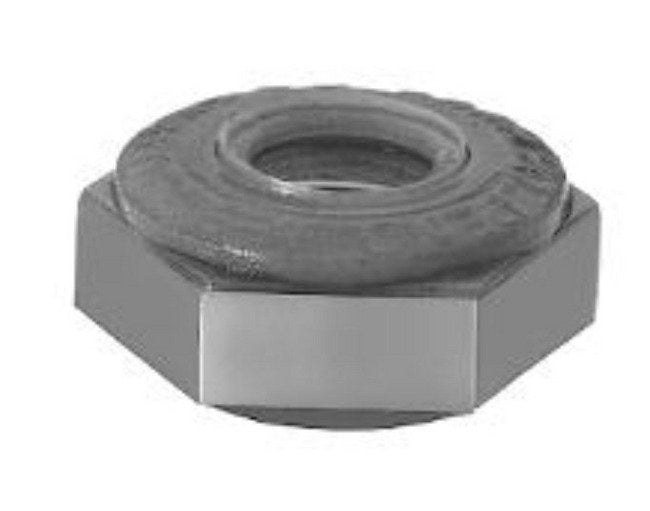

APM Hexseal® 1332/39 Standard Threaded Rotary Boot
APM Hexseal® 1332/39 Standard Threaded Rotary Boot
SKU:APM-a2a88e
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
APM Hexseal® 1332/39 Standard Threaded Rotary Boot
$49.99
Quantity: 1
Claim Your Seller Account
APM Hexseal® 1332/39 Standard Threaded Rotary Boot
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Rotary switches are unique in that they operate with a twisting motion as opposed to a push or press motion. The central shaft of a rotary device must be free to rotate, which can make sealing a rotary device more complicated to accomplish. Since a full coverage boot does not work for a rotary device, APM Hexseal® developed a specialized open boot, molded from silicone to a threaded mounting nut, that, once correctly mounted, seals around the rotating shaft as well as to the mounting panel. These boots are specifically designed to withstand the friction created by the shaft rotation without restricting the actuation motion.
Product Specifications
Additional Information

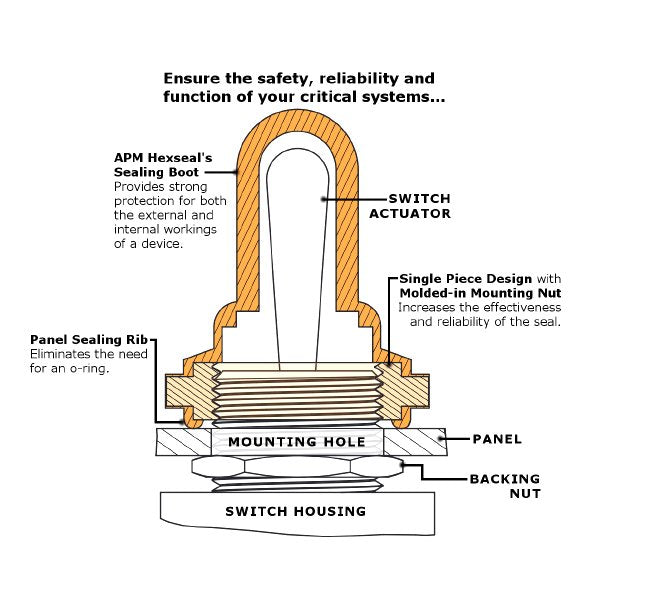

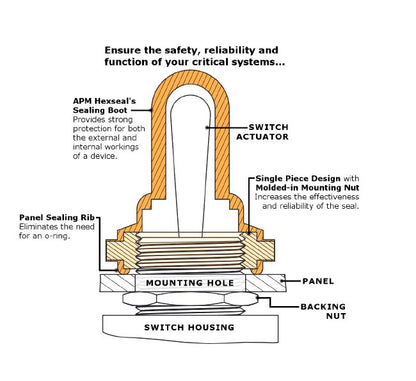

Any unsealed electrical devices mounted to a control panel or piece of electrical equipment can fall victim to the impacts of hostile environmental factors if not properly protected. In this context, "environmental" is a very broad term, encompassing any number of possible factors, including weather conditions like rain, snow or prolonged wind and sun exposure, pressure changes from submersion in fluids or changes in altitude, contaminants such as water, ice, salt, air, dust, dirt, grease, chemicals, and even spilled beverages.APM Hexseal®'s Sealing Boots are designed to protect the vulnerable areas of a device, and create a seal against the mounting panel, providing strong protection for the device itself, and for the overall function of the system.APM Hexseal®'s UL and ULC Recognized Components conform to UL Standard 50. Contact us for a complete list of our Recognized Components and ratings.

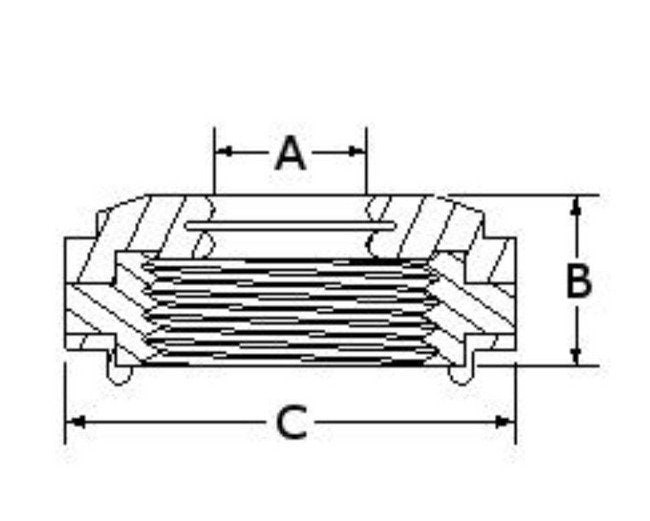

Dimensions Height B
0.200 in | 5.50 mm
Dimensions Hex Size C
0.500 in | 12.70 mm
Dimensions Shaft Size A
0.196 in | 5.00 mm
Material Specifications Elastomer
Silicone Conforms to A-A-59588 | Class 3A | GR50 (Durometer Options Available.) | Gray (Additional Colors Available.)
Material Specifications Enclosure Protection
International Electrotechnical Commission (IEC) Ingress Protection (IP66) | Ingress Protection (IP68) (A dual IP code rating indicates that both ratings apply.)
Material Specifications Mounting Nut Material
Brass | Nickel Plated
Material Specifications Resistant To
Dust | Fungus | Lubricating Oils | Most Acids | Ozone | Salt Spray | Splash | Sunlight | Weather
Material Specifications Shelf Life
Excess of 25 Years
Material Specifications Temperature Range
-103 to 400 ºF | -75 to 204 ºC
Note
Proudly manufacturing in the USA for 70 years.Please contact us directly for additional parts and alternative size options.
Specifications Class
6H
Specifications Industry Standards
Underwriters Laboratories (UL) | Underwriters Laboratories of Canada (ULC) | Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) | Restriction of Hazardous Substances (RoHS) | Defense Federal Acquisition Regulation Supplement (DFARS) Compliant | International Organization for Standardization (ISO 9001:2008) Registered
Specifications System Of Measurement
Metric
Specifications Thread Size
M7 x 0.75
