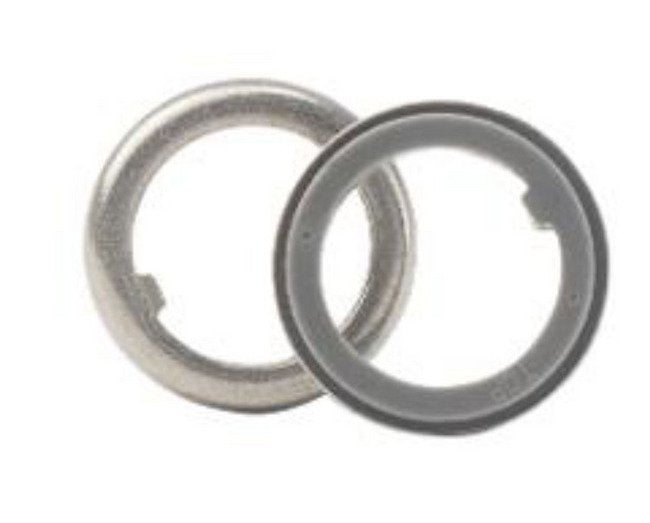

Bushing Seals pack all the sealing power of a boot, but focus on the mounting hole as opposed to the switch itself. Installed before a switch locking nut, the bushing seal fits snugly against either the front or back side of the mounting panel, sealing the mounting hole from any possible intrusion. Bushing Seals are small, inconspicuous and perfect for ready-sealed toggle, push button and rotary switches.
Product Specifications
Additional Information
APM Hexseal®'s UL and ULC Recognized Components conform to UL Standard 50. Contact us for a complete list of our Recognized Components and ratings.

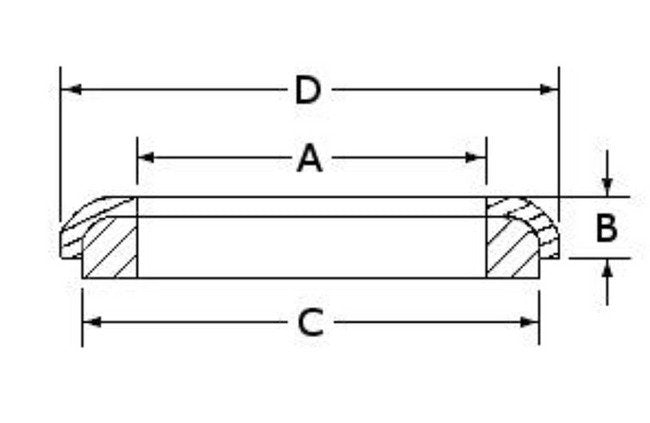

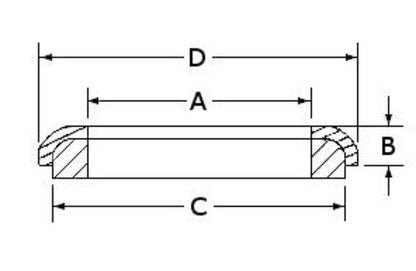

Dimensions Bushing Size A
0.469 in | 11.91 mm
Dimensions Height B
0.120 in | 3.03 mm
Dimensions Outer Diameter D
0.662 in | 16.81 mm
Dimensions Seal Diameter C
0.610 in | 15.49 mm
Material Specifications Elastomer
Silicone Conforms to A-A-59588 | Class 3A | GR50 (Durometer Options Available.) | Gray (Additional Colors Available.)
Material Specifications Enclosure Protection
International Electrotechnical Commission (IEC) Ingress Protection (IP66) | Ingress Protection (IP68) (A dual IP code rating indicates that both ratings apply.)
Material Specifications Mounting Nut Material
18/8 Stainless Steel
Material Specifications Resistant To
Dust | Fungus | Lubricating Oils | Most Acids | Ozone | Salt Spray | Splash | Sunlight | Weather
Material Specifications Shelf Life
Excess of 25 Years
Material Specifications Temperature Range
-103 to 400 ºF | -75 to 204 ºC
Note
Proudly manufacturing in the USA for 70 years.Please contact us directly for additional parts and alternative size options.
Specifications Industry Standards
Underwriters Laboratories (UL) | Underwriters Laboratories of Canada (ULC) | Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) | Restriction of Hazardous Substances (RoHS) | Defense Federal Acquisition Regulation Supplement (DFARS) Compliant | International Organization for Standardization (ISO 9001:2008) Registered
Specifications Military Part
M5423/16-01
Specifications Seal Construction Type
Bushing
Specifications Seal Style
Single-Side Seal
