Apollo 610F Class 125 Flanged Gate Valve - 4 in
Apollo 610F Class 125 Flanged Gate Valve - 4 in
SKU:VAL-b1d709
Reliable full-flow Apollo 610F Class 125 Gate Valve, bronze wedge, non-rising stem, MSS SP-70 & ASME B16.10 compliant, handles steam up to 353°F & 200 psi.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Apollo 610F Class 125 Flanged Gate Valve - 4 in
$249.99
Quantity: 1
Claim Your Seller Account
Apollo 610F Class 125 Flanged Gate Valve - 4 in
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

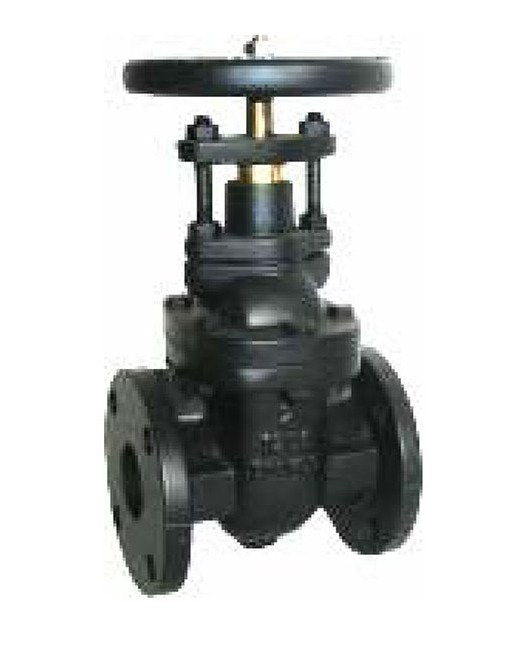

Upgrade your plumbing system with the Apollo 610F Class 125 Flanged Gate Valve. This full-flow valve is meticulously engineered with a solid bronze wedge, non-rising stem, and adjustable graphite packing. Its rugged construction and back seat protection ensure long-lasting durability. Compliant with MSS SP-70 and ASME B16.10 standards, this valve is rated to handle saturated steam up to 353°F and cold working pressures up to 200 psi. Trust in its cast iron body, cast bronze seat rings, and wide temperature range from -20°F to 406°F for reliable performance.
Product Specifications
Specifications Body Gasket No 7
Graphite
Specifications Body No 1
Cast Iron (ASTM A 126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 10
Cast Iron (ASTM A 126 CL B)
Specifications Gland Follower Bolts No 11
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 15
Ductile Iron (ASTM A536 65-45-12)
Specifications Handwheel No 17
Cast Iron (ASTM A 126 CL B)
Specifications Handwheel Nut No 20
Ductile Iron (ASTM A536 65-45-12)
Specifications Nameplate No 18
Aluminum
Specifications Nuts No 9
Carbon Steel (ASTM A307 B)
Specifications Packing Gland No 16
Cast Bronze (ASTM B584)
Specifications Packing No 14
Graphite
Specifications Seat Rings No 2
Cast Bronze (ASTM B62)
Specifications Size
4 in
Specifications Stem No 6
Brass (ASTM B16)
Specifications Stuffing Box Gaskets No 12
Graphite
Specifications Stuffing Box No 13
Cast Iron (ASTM A 126 CL B)
Specifications Washer No 19
Carbon Steel (ASTM A307 B)
Specifications Wedge Face Rings No 3
Cast Bronze (ASTM B62)
Specifications Wedge No 4
Cast Iron (ASTM A 126 CL B)
Specifications Wedge Nut No 5
Cast Bronze (ASTM B62)
