Apollo 711F Class 125 Globe Valve - 8 inch Flanged Ball Valve
Apollo 711F Class 125 Globe Valve - 8 inch Flanged Ball Valve
SKU:VAL-759fd7
Apollo 711F Class 125 Globe Valve - High-performance throttling valve for plumbing & heating with bronze seat rings & full port capability. Meets MSS SP-85 & ASME B16.10 standards.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Apollo 711F Class 125 Globe Valve - 8 inch Flanged Ball Valve
$289.99
Quantity: 1
Claim Your Seller Account
Apollo 711F Class 125 Globe Valve - 8 inch Flanged Ball Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

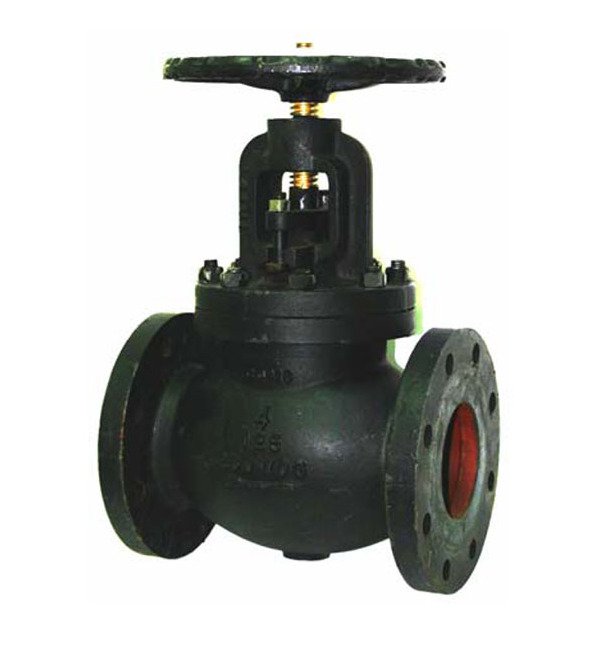

The Apollo Model 711F Class 125 Globe Valve is a high-performance valve designed for efficient throttling in plumbing and heating systems. This full-port valve is compatible with ANSI 125# & 150# flanges and features bronze mounted seat rings for positive shut-off. With adjustable graphite stem packing and back seat protection, it ensures reliable operation in a wide temperature range. Meeting MSS SP-85 and ASME B16.10 standards, this valve is ideal for government and institutional procurement needs.
Product Specifications
Specifications Body Gasket No 10
Graphite
Specifications Body No 1
Cast Iron (ASTM A126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 11
Cast Iron (ASTM A126 CL B)
Specifications Disc No 5
Cast Iron (ASTM A126 CL B)
Specifications Disc Seal Ring No 4
Cast Bronze (ASTM B62)
Specifications Gland Follower Bolts No 9
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 14
Carbon Steel (ASTM A307 B) | Ductile Iron (ASTM A536 65-45-12)
Specifications Gland Follower Nut No 15
Carbon Steel (ASTM A307 B)
Specifications Guide Spindle No 2
Brass (ASTM B16)
Specifications Handwheel No 18
Cast Iron (ASTM A126 CL B)
Specifications Handwheel Nut No 21
Ductile Iron (ASTM A536 65-45-12)
Specifications Identification Plate No 19
Aluminum
Specifications Packing Gland No 13
Cast Brass (ASTM B584)
Specifications Packing No 12
Graphite
Specifications Screw No 17
Carbon Steel (ASTM A307 B)
Specifications Seat Ring No 3
Cast Bronze (ASTM B62)
Specifications Size
8 in
Specifications Stem No 7
Brass (ASTM B16)
Specifications Swivel Nut No 6
Cast Brass (ASTM B584)
Specifications Washer No 20
Carbon Steel (ASTM A307 B)
Specifications Yoke Bushing No 16
Cast Bronze (ASTM B62)
