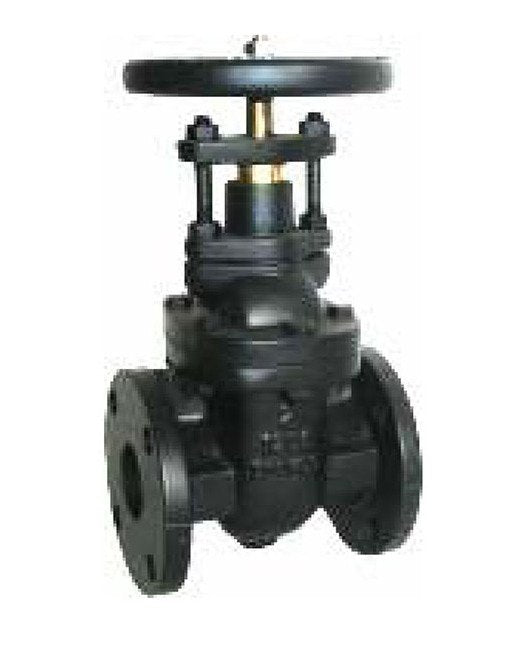

Apollo Model 610F Class 125 Cast Iron Gate Valve - 20-Inch
Apollo Model 610F Class 125 Cast Iron Gate Valve - 20-Inch
SKU:VAL-a602fc
High-performance Apollo 610F Class 125 Gate Valve with full port design, bronze seat rings, and a non-rising stem for reliable plumbing and heating system use.
Regular price
$359.99
Regular price
Sale price
$359.99
Unit price
per
Initiate Order
Apollo Model 610F Class 125 Cast Iron Gate Valve - 20-Inch
$359.99
Quantity: 1
Claim Your Seller Account
Apollo Model 610F Class 125 Cast Iron Gate Valve - 20-Inch
$359.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Apollo Model 610F Class 125 Gate Valve is a high-performance valve suitable for plumbing and heating systems. This durable valve features a full port design, bronze seat rings, a solid wedge, non-rising stem, and flanged connections. Meeting MSS SP-70 and ASME B16.10 standards, this valve offers reliable operation in a wide temperature range. With a cast iron body, brass stem, and graphite packing, it ensures long-lasting performance for institutional and industrial applications.
Product Specifications
Specifications Body Gasket No 7
Graphite
Specifications Body No 1
Cast Iron (ASTM A 126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 10
Cast Iron (ASTM A 126 CL B)
Specifications Gland Follower Bolts No 11
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 15
Ductile Iron (ASTM A536 65-45-12)
Specifications Handwheel No 17
Cast Iron (ASTM A 126 CL B)
Specifications Handwheel Nut No 20
Ductile Iron (ASTM A536 65-45-12)
Specifications Nameplate No 18
Aluminum
Specifications Nuts No 9
Carbon Steel (ASTM A307 B)
Specifications Packing Gland No 16
Cast Bronze (ASTM B584)
Specifications Packing No 14
Graphite
Specifications Seat Rings No 2
Cast Bronze (ASTM B62)
Specifications Size
20 in
Specifications Stem No 6
Brass (ASTM B16)
Specifications Stuffing Box Gaskets No 12
Graphite
Specifications Stuffing Box No 13
Cast Iron (ASTM A 126 CL B)
Specifications Washer No 19
Carbon Steel (ASTM A307 B)
Specifications Wedge Face Rings No 3
Cast Bronze (ASTM B62)
Specifications Wedge No 4
Cast Iron (ASTM A 126 CL B)
Specifications Wedge Nut No 5
Cast Bronze (ASTM B62)
