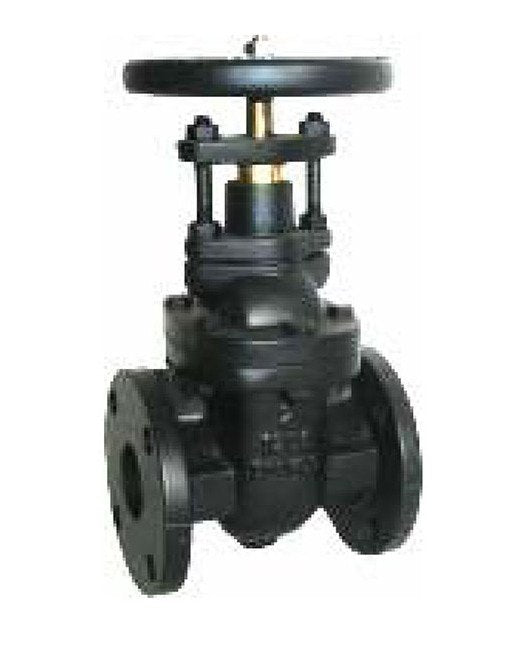

Apollo Model 610F Class 125 Flanged Gate Valve - 12 inch
Apollo Model 610F Class 125 Flanged Gate Valve - 12 inch
SKU:VAL-88e6c7
Apollo Model 610F Class 125 Gate Valve - Reliable, durable, and compliant with industry standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Apollo Model 610F Class 125 Flanged Gate Valve - 12 inch
$349.99
Quantity: 1
Claim Your Seller Account
Apollo Model 610F Class 125 Flanged Gate Valve - 12 inch
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Apollo Model 610F Class 125 Gate Valve is a premium choice for plumbing and heating systems, boasting ANSI 125# & 150# Flange compatibility. With a full port design, bronze mounted seat rings, solid wedge, and non-rising stem, this valve ensures reliable performance. Featuring a durable construction with graphite stem packing and back seat protection, it meets MSS SP-70 & ASME B16.10 standards. Operating at 125 psi to 353°F for 2-12 inch sizes and 100 psi to 338°F for 14-24 inch sizes, it offers a temperature range of -20°F to 406°F.
Product Specifications
Specifications Body Gasket No 7
Graphite
Specifications Body No 1
Cast Iron (ASTM A 126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 10
Cast Iron (ASTM A 126 CL B)
Specifications Gland Follower Bolts No 11
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 15
Ductile Iron (ASTM A536 65-45-12)
Specifications Handwheel No 17
Cast Iron (ASTM A 126 CL B)
Specifications Handwheel Nut No 20
Ductile Iron (ASTM A536 65-45-12)
Specifications Nameplate No 18
Aluminum
Specifications Nuts No 9
Carbon Steel (ASTM A307 B)
Specifications Packing Gland No 16
Cast Bronze (ASTM B584)
Specifications Packing No 14
Graphite
Specifications Seat Rings No 2
Cast Bronze (ASTM B62)
Specifications Size
12 in
Specifications Stem No 6
Brass (ASTM B16)
Specifications Stuffing Box Gaskets No 12
Graphite
Specifications Stuffing Box No 13
Cast Iron (ASTM A 126 CL B)
Specifications Washer No 19
Carbon Steel (ASTM A307 B)
Specifications Wedge Face Rings No 3
Cast Bronze (ASTM B62)
Specifications Wedge No 4
Cast Iron (ASTM A 126 CL B)
Specifications Wedge Nut No 5
Cast Bronze (ASTM B62)
