Apollo Model 610F Class 125 Gate Valve
Apollo Model 610F Class 125 Gate Valve
SKU:VAL-3e2a71
Reliable Apollo Class 125 Gate Valve with full flow capabilities, compatible with ANSI 125# & 150# Flanges, solid wedge, and adjustable graphite stem packing.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Apollo Model 610F Class 125 Gate Valve
$189.99
Quantity: 1
Claim Your Seller Account
Apollo Model 610F Class 125 Gate Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

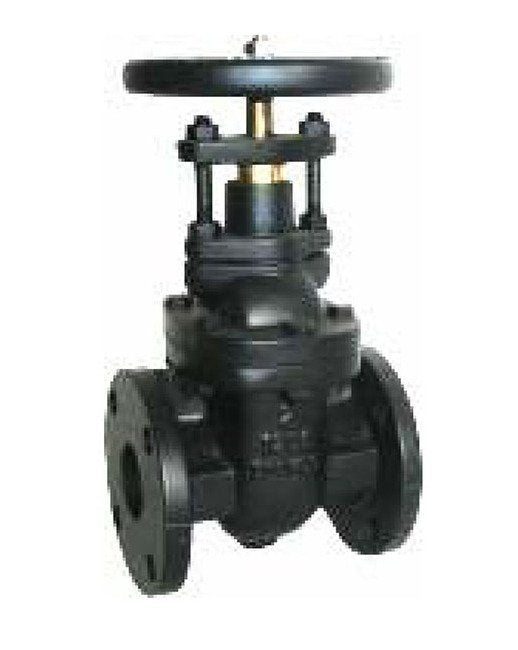

The Apollo Model 610F Class 125 Gate Valve is a reliable choice for plumbing and heating systems, offering full flow capabilities. This valve is compatible with ANSI 125# & 150# Flanges, featuring a full port design, solid wedge, and adjustable graphite stem packing. With back seat protection and built to MSS SP-70 and ASME B16.10 standards, it ensures performance under varying conditions. The valve's materials, including cast iron body and bronze seat rings, guarantee durability and optimal functionality.
Product Specifications
Specifications Body Gasket No 7
Graphite
Specifications Body No 1
Cast Iron (ASTM A 126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 10
Cast Iron (ASTM A 126 CL B)
Specifications Gland Follower Bolts No 11
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 15
Ductile Iron (ASTM A536 65-45-12)
Specifications Handwheel No 17
Cast Iron (ASTM A 126 CL B)
Specifications Handwheel Nut No 20
Ductile Iron (ASTM A536 65-45-12)
Specifications Nameplate No 18
Aluminum
Specifications Nuts No 9
Carbon Steel (ASTM A307 B)
Specifications Packing Gland No 16
Cast Bronze (ASTM B584)
Specifications Packing No 14
Graphite
Specifications Seat Rings No 2
Cast Bronze (ASTM B62)
Specifications Size
2 in
Specifications Stem No 6
Brass (ASTM B16)
Specifications Stuffing Box Gaskets No 12
Graphite
Specifications Stuffing Box No 13
Cast Iron (ASTM A 126 CL B)
Specifications Washer No 19
Carbon Steel (ASTM A307 B)
Specifications Wedge Face Rings No 3
Cast Bronze (ASTM B62)
Specifications Wedge No 4
Cast Iron (ASTM A 126 CL B)
Specifications Wedge Nut No 5
Cast Bronze (ASTM B62)
