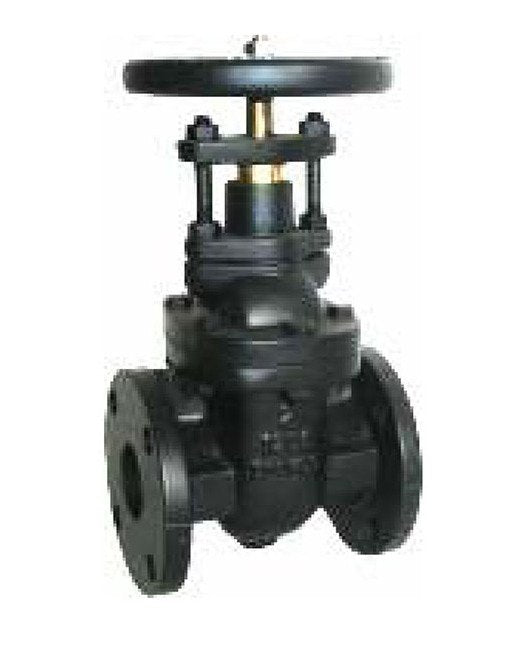

The Apollo Model 610F Class 125 Gate Valve is a durable cast iron valve perfect for plumbing and heating systems. With ANSI 125# & 150# Flange compatibility, this valve features a full port, bronze mounted seat rings, solid wedge, adjustable graphite stem packing, non-rising stem, and back seat protection. Meeting MSS SP-70 and ASME B16.10 standards, it offers superior performance up to 353°F in saturated steam applications. Designed for reliability and longevity in institutional settings.
Product Specifications
Specifications Body Gasket No 7
Graphite
Specifications Body No 1
Cast Iron (ASTM A 126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 10
Cast Iron (ASTM A 126 CL B)
Specifications Gland Follower Bolts No 11
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 15
Ductile Iron (ASTM A536 65-45-12)
Specifications Handwheel No 17
Cast Iron (ASTM A 126 CL B)
Specifications Handwheel Nut No 20
Ductile Iron (ASTM A536 65-45-12)
Specifications Nameplate No 18
Aluminum
Specifications Nuts No 9
Carbon Steel (ASTM A307 B)
Specifications Packing Gland No 16
Cast Bronze (ASTM B584)
Specifications Packing No 14
Graphite
Specifications Seat Rings No 2
Cast Bronze (ASTM B62)
Specifications Size
10 in
Specifications Stem No 6
Brass (ASTM B16)
Specifications Stuffing Box Gaskets No 12
Graphite
Specifications Stuffing Box No 13
Cast Iron (ASTM A 126 CL B)
Specifications Washer No 19
Carbon Steel (ASTM A307 B)
Specifications Wedge Face Rings No 3
Cast Bronze (ASTM B62)
Specifications Wedge No 4
Cast Iron (ASTM A 126 CL B)
Specifications Wedge Nut No 5
Cast Bronze (ASTM B62)
