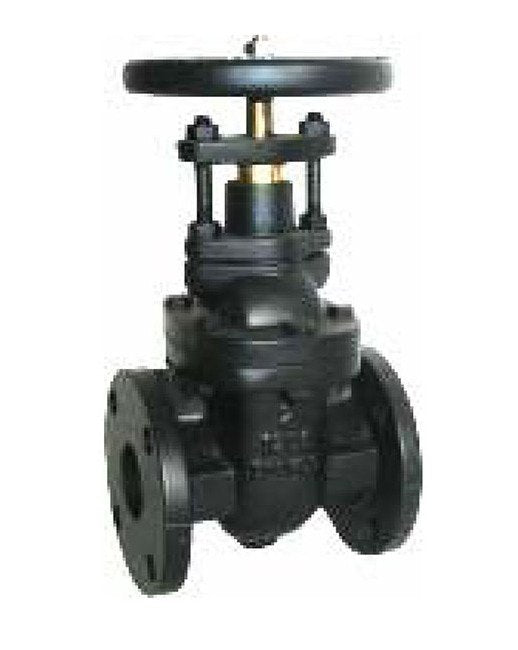

Apollo Model 610F Class 125 Gate Valve

Apollo Model 610F Class 125 Gate Valve

VAL-560167

Reliable Apollo Class 125 Gate Valve with full flow capabilities, bronze seat rings, and solid wedge. Compliant with MSS SP-70 & ASME B16.10.

$289.99
$289.99
Sale

Initiate Order

Apollo Model 610F Class 125 Gate Valve

Apollo Model 610F Class 125 Gate Valve

$289.99

Quantity: 1

Claim Your Seller Account

Apollo Model 610F Class 125 Gate Valve

Apollo Model 610F Class 125 Gate Valve

$289.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Apollo Model 610F Class 125 Gate Valve is a reliable choice for plumbing and heating systems, offering full flow capabilities. This valve features a full port, bronze mounted seat rings, a solid wedge, and adjustable graphite stem packing. Compliant with MSS SP-70 and ASME B16.10 standards, it ensures quality performance with a working pressure of up to 200 psi and a temperature range of -20°F to 406°F. With a flanged connection and a bolted bonnet design, this gate valve provides ease of installation and maintenance for both consumer and institutional applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Body Gasket No 7
Graphite
Specifications Body No 1
Cast Iron (ASTM A 126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 10
Cast Iron (ASTM A 126 CL B)
Specifications Gland Follower Bolts No 11
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 15
Ductile Iron (ASTM A536 65-45-12)
Specifications Handwheel No 17
Cast Iron (ASTM A 126 CL B)
Specifications Handwheel Nut No 20
Ductile Iron (ASTM A536 65-45-12)
Specifications Nameplate No 18
Aluminum
Specifications Nuts No 9
Carbon Steel (ASTM A307 B)
Specifications Packing Gland No 16
Cast Bronze (ASTM B584)
Specifications Packing No 14
Graphite
Specifications Seat Rings No 2
Cast Bronze (ASTM B62)
Specifications Size
18 in
Specifications Stem No 6
Brass (ASTM B16)
Specifications Stuffing Box Gaskets No 12
Graphite
Specifications Stuffing Box No 13
Cast Iron (ASTM A 126 CL B)
Specifications Washer No 19
Carbon Steel (ASTM A307 B)
Specifications Wedge Face Rings No 3
Cast Bronze (ASTM B62)
Specifications Wedge No 4
Cast Iron (ASTM A 126 CL B)
Specifications Wedge Nut No 5
Cast Bronze (ASTM B62)
