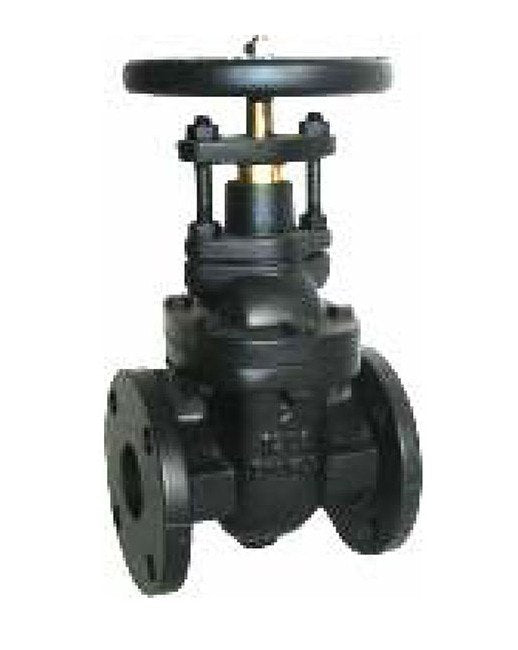

Apollo Model 610F Class 125 Gate Valve
Apollo Model 610F Class 125 Gate Valve
SKU:VAL-88f9f8
Reliable Apollo Gate Valve for plumbing & heating systems. Full port with bronze seat rings & solid wedge. Conforms to MSS SP-70 & ASME B16.10 standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Apollo Model 610F Class 125 Gate Valve
$189.99
Quantity: 1
Claim Your Seller Account
Apollo Model 610F Class 125 Gate Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Apollo Model 610F Class 125 Gate Valve is designed for optimal flow capacity in plumbing and heating systems. This full port valve features bronze mounted seat rings, a solid wedge, adjustable graphite stem packing, non-rising stem, and a bolted bonnet. Meeting MSS SP-70 and ASME B16.10 standards, it offers robust performance for saturated steam up to 353°F and cold working pressures. With a durable construction including cast iron and bronze components, this gate valve ensures reliable operation and longevity in various applications.
Product Specifications
Specifications Body Gasket No 7
Graphite
Specifications Body No 1
Cast Iron (ASTM A 126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 10
Cast Iron (ASTM A 126 CL B)
Specifications Gland Follower Bolts No 11
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 15
Ductile Iron (ASTM A536 65-45-12)
Specifications Handwheel No 17
Cast Iron (ASTM A 126 CL B)
Specifications Handwheel Nut No 20
Ductile Iron (ASTM A536 65-45-12)
Specifications Nameplate No 18
Aluminum
Specifications Nuts No 9
Carbon Steel (ASTM A307 B)
Specifications Packing Gland No 16
Cast Bronze (ASTM B584)
Specifications Packing No 14
Graphite
Specifications Seat Rings No 2
Cast Bronze (ASTM B62)
Specifications Size
3 in
Specifications Stem No 6
Brass (ASTM B16)
Specifications Stuffing Box Gaskets No 12
Graphite
Specifications Stuffing Box No 13
Cast Iron (ASTM A 126 CL B)
Specifications Washer No 19
Carbon Steel (ASTM A307 B)
Specifications Wedge Face Rings No 3
Cast Bronze (ASTM B62)
Specifications Wedge No 4
Cast Iron (ASTM A 126 CL B)
Specifications Wedge Nut No 5
Cast Bronze (ASTM B62)
