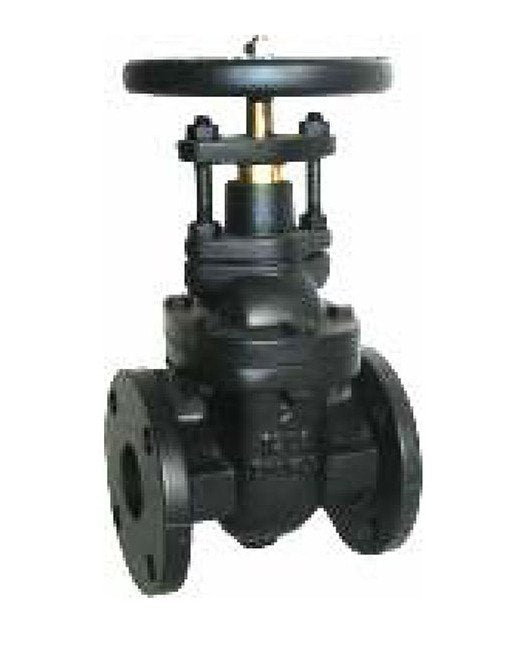

Apollo Model 610F Class 125 Gate Valve - 5-Inch
Apollo Model 610F Class 125 Gate Valve - 5-Inch
SKU:VAL-600c38
Enhance your plumbing system with the Apollo Model 610F Class 125 Gate Valve - Full Flow Capabilities & Durable Design - Compliant with MSS SP-70 & ASME B16.10
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Apollo Model 610F Class 125 Gate Valve - 5-Inch
$289.99
Quantity: 1
Claim Your Seller Account
Apollo Model 610F Class 125 Gate Valve - 5-Inch
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your plumbing system with the Apollo Model 610F Class 125 Gate Valve. This valve features full flow capabilities, compatibility with ANSI 125# & 150# flanges, a solid wedge for enhanced performance, adjustable graphite stem packing, and a non-rising stem design. With bronze mounted seat rings and back seat protection, this gate valve ensures durability and reliability. Meeting MSS SP-70 and ASME B16.10 standards, it performs exceptionally in various settings, offering a working pressure of 200 psi at 100°F. Expand your system's capabilities with this high-quality gate valve.
Product Specifications
Specifications Body Gasket No 7
Graphite
Specifications Body No 1
Cast Iron (ASTM A 126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 10
Cast Iron (ASTM A 126 CL B)
Specifications Gland Follower Bolts No 11
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 15
Ductile Iron (ASTM A536 65-45-12)
Specifications Handwheel No 17
Cast Iron (ASTM A 126 CL B)
Specifications Handwheel Nut No 20
Ductile Iron (ASTM A536 65-45-12)
Specifications Nameplate No 18
Aluminum
Specifications Nuts No 9
Carbon Steel (ASTM A307 B)
Specifications Packing Gland No 16
Cast Bronze (ASTM B584)
Specifications Packing No 14
Graphite
Specifications Seat Rings No 2
Cast Bronze (ASTM B62)
Specifications Size
5 in
Specifications Stem No 6
Brass (ASTM B16)
Specifications Stuffing Box Gaskets No 12
Graphite
Specifications Stuffing Box No 13
Cast Iron (ASTM A 126 CL B)
Specifications Washer No 19
Carbon Steel (ASTM A307 B)
Specifications Wedge Face Rings No 3
Cast Bronze (ASTM B62)
Specifications Wedge No 4
Cast Iron (ASTM A 126 CL B)
Specifications Wedge Nut No 5
Cast Bronze (ASTM B62)
