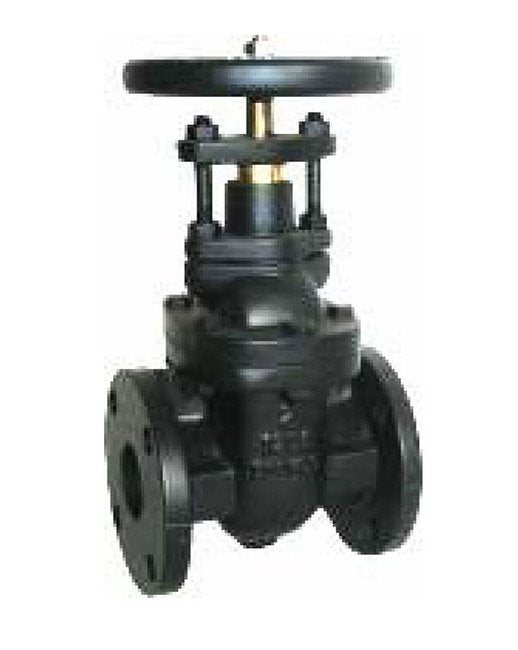

Apollo Model 610F Class 125 Gate Valve 6"
Apollo Model 610F Class 125 Gate Valve 6"
SKU:VAL-b2c4b1
Reliable Apollo 610F Class 125 Gate Valve for plumbing and heating systems. Full port, bronze seat rings, and non-rising stem.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Apollo Model 610F Class 125 Gate Valve 6"
$349.99
Quantity: 1
Claim Your Seller Account
Apollo Model 610F Class 125 Gate Valve 6"
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Apollo Model 610F Class 125 Gate Valve is designed for full flow functionality and reliability in plumbing and heating systems. This valve, compatible with ANSI 125# & 150# flanges, features a full port, solid bronze mounted seat rings, non-rising stem, adjustable graphite stem packing, and back seat protection. It meets MSS SP-70 and ASME B16.10 standards, with a performance rating for saturated steam and cold working pressure suitable for various applications. Crafted with high-quality materials like cast iron, bronze, and brass, the valve ensures durability and performance in demanding environments.
Product Specifications
Specifications Body Gasket No 7
Graphite
Specifications Body No 1
Cast Iron (ASTM A 126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 10
Cast Iron (ASTM A 126 CL B)
Specifications Gland Follower Bolts No 11
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 15
Ductile Iron (ASTM A536 65-45-12)
Specifications Handwheel No 17
Cast Iron (ASTM A 126 CL B)
Specifications Handwheel Nut No 20
Ductile Iron (ASTM A536 65-45-12)
Specifications Nameplate No 18
Aluminum
Specifications Nuts No 9
Carbon Steel (ASTM A307 B)
Specifications Packing Gland No 16
Cast Bronze (ASTM B584)
Specifications Packing No 14
Graphite
Specifications Seat Rings No 2
Cast Bronze (ASTM B62)
Specifications Size
6 in
Specifications Stem No 6
Brass (ASTM B16)
Specifications Stuffing Box Gaskets No 12
Graphite
Specifications Stuffing Box No 13
Cast Iron (ASTM A 126 CL B)
Specifications Washer No 19
Carbon Steel (ASTM A307 B)
Specifications Wedge Face Rings No 3
Cast Bronze (ASTM B62)
Specifications Wedge No 4
Cast Iron (ASTM A 126 CL B)
Specifications Wedge Nut No 5
Cast Bronze (ASTM B62)
