Apollo Model 711F Class 125 Globe Valve
Apollo Model 711F Class 125 Globe Valve
SKU:VAL-9abb3f
Efficient flow control, reliable performance. Compliant with MSS SP-85 & ASME standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Apollo Model 711F Class 125 Globe Valve
$189.99
Quantity: 1
Claim Your Seller Account
Apollo Model 711F Class 125 Globe Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

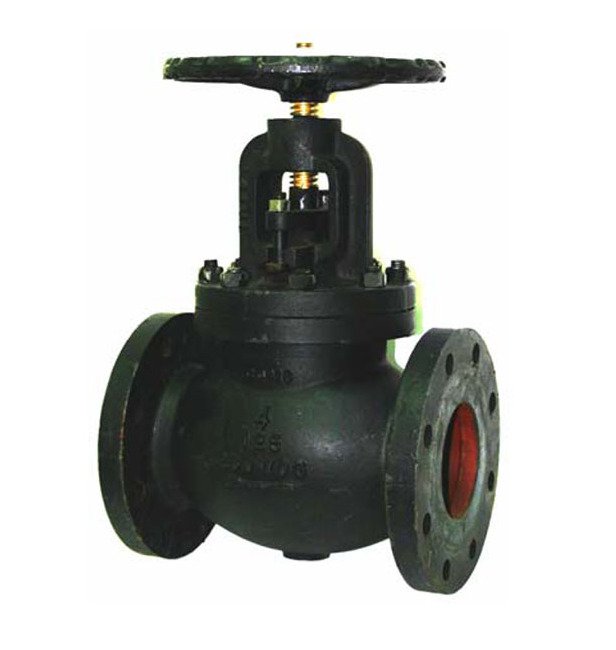

The Apollo Model 711F Class 125 Globe Valve is a robust solution for precise flow control in plumbing and heating systems. Featuring compatibility with ANSI 125# & 150# Flanges, this valve ensures positive shut-off and offers excellent throttling capabilities. With durable construction including cast iron body, bronze mounted seat rings, and graphite stem packing, this valve guarantees reliable performance in a wide temperature range. Compliant with MSS SP-85 and ASME B16.10 standards, this globe valve is designed for efficiency and durability, making it an ideal choice for institutional and government procurement.
Product Specifications
Specifications Body Gasket No 10
Graphite
Specifications Body No 1
Cast Iron (ASTM A126 CL B)
Specifications Bolts No 8
Carbon Steel (ASTM A307 B)
Specifications Bonnet No 11
Cast Iron (ASTM A126 CL B)
Specifications Disc No 5
Cast Iron (ASTM A126 CL B)
Specifications Disc Seal Ring No 4
Cast Bronze (ASTM B62)
Specifications Gland Follower Bolts No 9
Carbon Steel (ASTM A307 B)
Specifications Gland Follower No 14
Ductile Iron (ASTM A536 65-45-12)
Specifications Gland Follower Nut No 15
Carbon Steel (ASTM A307 B)
Specifications Guide Spindle No 2
Brass (ASTM B16)
Specifications Handwheel No 18
Cast Iron (ASTM A126 CL B)
Specifications Handwheel Nut No 21
Ductile Iron (ASTM A536 65-45-12)
Specifications Identification Plate No 19
Aluminum
Specifications Packing Gland No 13
Cast Brass (ASTM B584)
Specifications Packing No 12
Graphite
Specifications Screw No 17
Carbon Steel (ASTM A307 B)
Specifications Seat Ring No 3
Cast Bronze (ASTM B62)
Specifications Size
2 in
Specifications Stem No 7
Brass (ASTM B16)
Specifications Swivel Nut No 6
Cast Brass (ASTM B584)
Specifications Washer No 20
Carbon Steel (ASTM A307 B)
Specifications Yoke Bushing No 16
Cast Bronze (ASTM B62)
